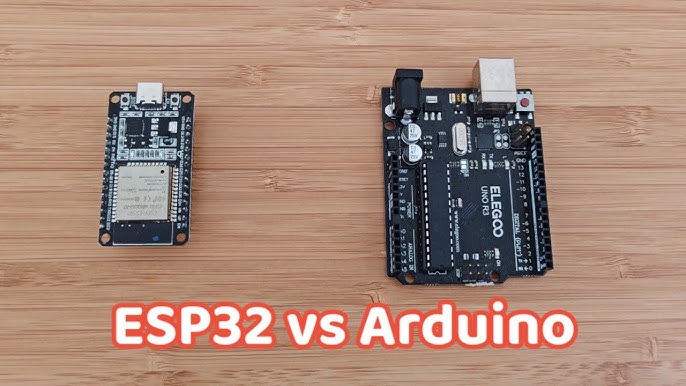

ESP32 vs Arduino, Compare their differences and use cases

Global electronic component supplier AMPHEO PTY LTD: Rich inventory for one-stop shopping. Inquire easily, and receive fast, customized solutions and quotes.

Here's a detailed comparison between ESP32 and Arduino microcontroller platforms to help you understand their differences and use cases:

🧠 Overview

Feature	ESP32	Arduino (e.g., Uno, Nano)
Manufacturer	Espressif Systems	Arduino (various chip vendors like Atmel/Microchip)
Processor	Dual-core Xtensa LX6 (or single-core versions)	8-bit AVR (e.g., ATmega328P)
Clock Speed	Up to 240 MHz	16 MHz
Architecture	32-bit	8-bit

🌐 Connectivity

Feature	ESP32	Arduino
Wi-Fi	Yes (built-in)	No (add-on module required)
Bluetooth	Yes (Classic + BLE)	No (unless using external module)
Ethernet	Via add-on module	Via add-on module

💾 Memory & Storage

Feature	ESP32	Arduino
Flash Memory	4 MB (varies by model)	32 KB (Uno)
RAM	~520 KB	2 KB (Uno)
EEPROM	Limited via emulation	1 KB (Uno)

🔌 I/O and Peripherals

Feature	ESP32	Arduino Uno
Digital I/O	~30-40 GPIOs	14 Digital I/O
Analog Input	12-bit ADC, multiple channels	10-bit ADC, 6 channels
PWM	Yes, many pins	Yes, 6 pins
DAC	Yes, 2 channels	No
Touch Sensor	Yes	No
Camera Support	Yes (ESP32-CAM)	No (needs shield/module)

🔧 Programming & Development

Feature	ESP32	Arduino
IDE Support	Arduino IDE, PlatformIO, ESP-IDF	Arduino IDE
Language	C/C++, MicroPython	C/C++
Debugging	JTAG supported (advanced)	Basic Serial Debug
Power Consumption	Lower with deep sleep modes	Higher, less power-efficient

💰 Cost & Availability

Feature	ESP32	Arduino
Price	~$5 to $15 depending on model	~$10 to $25 for Arduino Uno, Arduino Nano, etc.
Community	Growing rapidly	Very large and mature

✅ Use Case Recommendations

Choose ESP32 if:
- You need built-in Wi-Fi/Bluetooth.
- Your project requires more processing power or memory.
- You're doing IoT, smart home, or real-time sensor-based apps.
- You need camera or audio input.
Choose Arduino if:
- You’re a beginner in embedded systems.
- You’re working on simpler projects like LEDs, sensors, or robotics.
- You prioritize community support and straightforward examples.

🔚 Conclusion

While Arduino boards are fantastic for getting started and prototyping, the ESP32 offers far more powerful hardware capabilities, making it ideal for modern IoT and edge computing applications. For most Wi-Fi/Bluetooth-connected projects today, the ESP32 is often the better choice.
