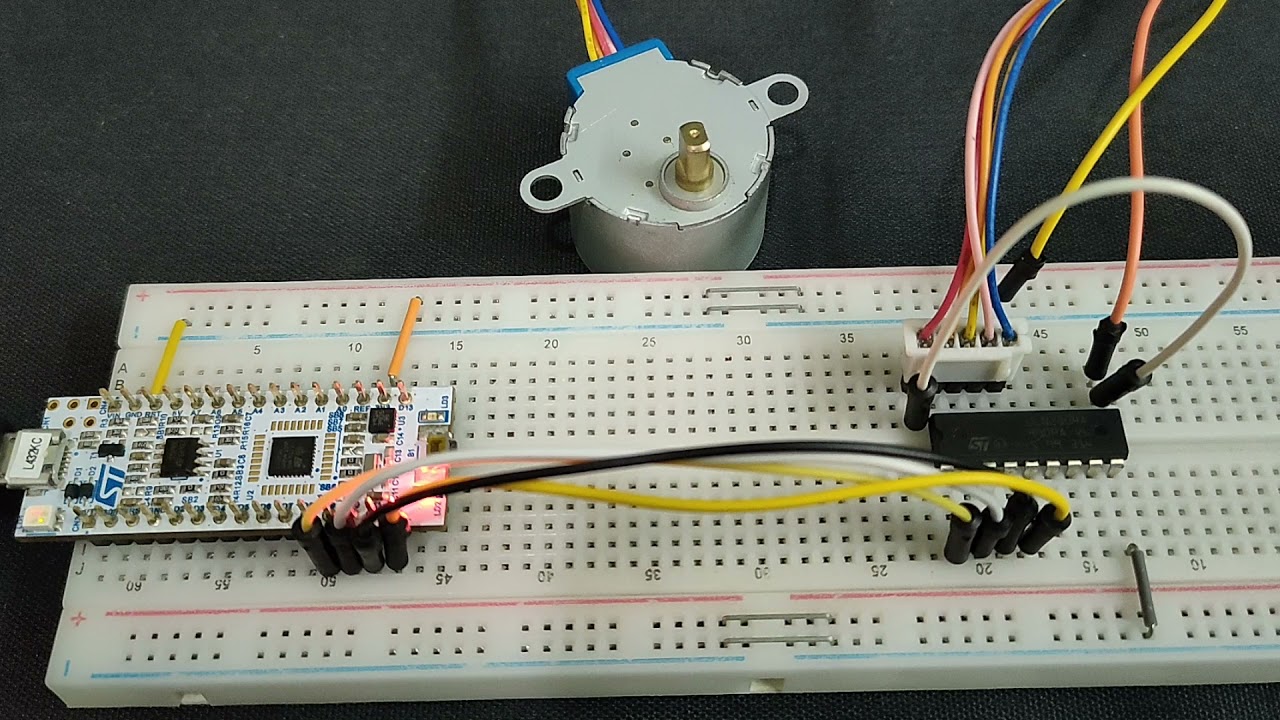

Controlling stepper motors with STM32 microcontrollers requires precise control over step timing, direction, speed, and acceleration. Here are four precision control methods commonly used with STM32 for stepper motors:
1. Timer-Based Pulse Generation (Hardware PWM or One-Pulse Mode)
Overview: Use STM32's advanced timers to generate precise step pulses at defined intervals.
-
How:
-
Configure a timer (e.g., TIMx) in output compare or PWM mode.
-
Each timer event generates a step pulse.
-
Direction is set via a GPIO before starting movement.
-
-
Benefits:
-
High timing accuracy.
-
Offloads CPU (interrupt or DMA can handle step output).
-
-
Use Case: Medium to high-speed movement with consistent pulse timing.
Precision: High
STM32 Peripherals: TIM, GPIO, DMA (optional)
2. Software-Based Step Control Using SysTick or Timer Interrupts
Overview: Generate steps using software control via periodic interrupts.
-
How:
-
Use
SysTick
orTIMx
interrupts. -
In ISR, toggle step pin and update motor state (speed ramp, direction).
-
-
Benefits:
-
Easier to implement advanced control (e.g., microstepping, trapezoidal acceleration).
-
-
Drawbacks:
-
Higher CPU load.
-
Less accurate than hardware-only solutions if not optimized.
-
Precision: Medium to High (depends on ISR timing)
STM32 Peripherals: SysTick, TIM, NVIC, GPIO
3. Microstepping Control via DAC/PWM + External Driver
Overview: Generate sine/cosine waveforms using DAC or PWM to drive microstepping drivers.
-
How:
-
Use STM32 DAC or PWM to create sine/cosine waveforms.
-
Feed signals into external analog or digital microstepping driver (like DRV8825 or L298N).
-
-
Benefits:
-
Smooth motion.
-
Higher resolution and less noise/vibration.
-
-
Drawbacks:
-
More complex to implement.
-
Requires additional hardware.
-
Precision: Very High
STM32 Peripherals: DAC, PWM (TIM), DMA (optional), GPIO
4. Closed-Loop Stepper Control (Feedback-Based)
Overview: Use an encoder or sensor to monitor motor position and adjust step pulses accordingly.
-
How:
-
Read encoder feedback using TIM in encoder mode.
-
Compare desired vs actual position.
-
Adjust pulse generation or correct errors.
-
-
Benefits:
-
Eliminates missed steps.
-
Allows higher acceleration and torque control.
-
-
Drawbacks:
-
Requires feedback hardware and PID control loop.
-
Increased software complexity.
-
Precision: Very High
STM32 Peripherals: TIM (Encoder Interface), ADC (for analog sensors), GPIO, PID algorithms
Summary Table
Method | Precision | CPU Load | Hardware Needed | Use Case |
---|---|---|---|---|
Timer-Based Pulse Generation | High | Low | Timer, GPIO | Precise step timing |
Software ISR Step Control | Med-High | Medium | Timer, GPIO | Custom movement profiles |
Microstepping via DAC/PWM | Very High | Medium | DAC/PWM, Driver | Smooth, silent high-res motion |
Closed-Loop Feedback Control | Very High | High | Encoder, TIM | High-precision, anti-slip control |
