Panasonic
EVQ-V5A00109B
Sensors
EVQ-V5A00109B
54-EVQ-V5A00109B

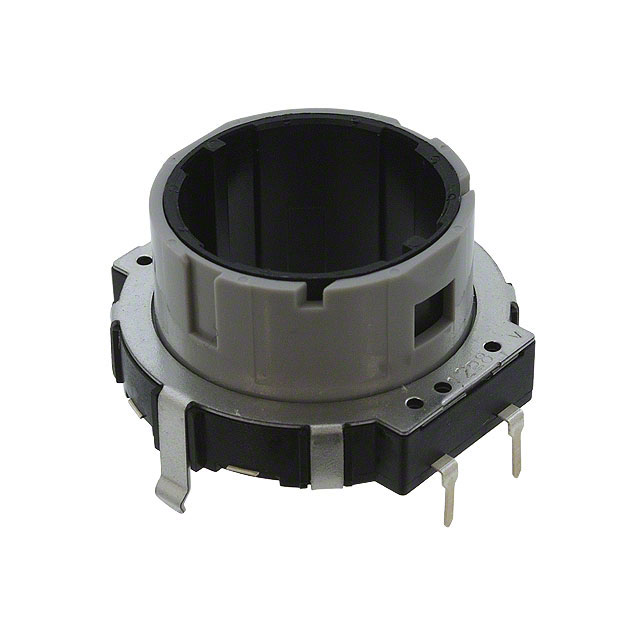

ROTARY ENCODER MECHANICAL 9PPR
In Stock : 307
Need wholesale pricing? Send RFQ now for the best rates and immediate response.
QUICK RFQ
ADD TO RFQ LIST
- 1+
- $2.23880
- $2.24
- 10+
- $2.04967
- $20.5
- 100+
- $1.92156
- $192.16
- 1000+
- $1.79955
- $1799.55
ADD TO CART
QUICK ORDER
$2.23880
$2.24
Tech Specifications
Product
Magnetic Encoders
Encoder Type
Mechanical
PPAP
Unknown
Built in Switch
No
Product Status
Not For New Designs
RoHS
RoHS Compliant
Automotive
Unknown
Product Length (mm)
29.6
Number of Channels
2
Technology
Mechanical
Voltage - Supply
-
REACH Status
Vendor Undefined
Typical Operating Supply Voltage
10VDC
EU RoHS
Compliant
Shaft Style
Hollow
Moisture Sensitivity Level (MSL)
Not Applicable
Encoder Signal
Digital Square Wave
Termination Style
PC Pin
Terminal Type
PC Pin
ECCN
EAR99
Rotational Life (Cycles Min)
30K
Orientation
Vertical
Mounting Type
PCB, Through Hole
Mounting
Through Hole
With Switch
Without Switch
Maximum Operating Torque (N.m)
0.018
Life
30000 Cycle
Pulses per Revolution
9
HTSUS
8543.70.4500
Package
Tray
USHTS
8543704500
Resolution
9 PPR
Programmability
No
HTS
8543.70.98.60
Output Type
Quadrature (Incremental)
ECCN (US)
EAR99
Number of Detents
18 Detent
Detent
Yes
Mfr
Panasonic Electronic Components
Product Depth (mm)
30
Mechanical Life (Cycles)
30000
RoHS Status
ROHS3 Compliant
Encoder Code
Quadrature
Mounting Style
PCB Mount
Motion
Rotary
Shaft Type
Hollow
Actuator Type
27mm Open Center
Encoder Reading
Incremental
Shaft Diameter
-
Series
EVQV
Type
Incremental
Body Orientation
Straight
Operating Supply Voltage
10 VDC
Product Height (mm)
15
Part Status
NRND
Base Product Number
EVQ-V5
EVQ-V5A00109B Documents
Download datasheets and manufacturer documentation for EVQ-V5A00109B
