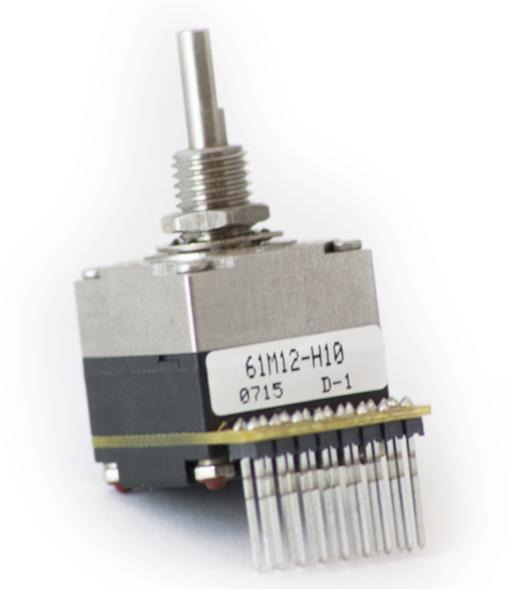

Grayhill, Inc.
61M12-L10
Sensors
61M12-L10
54-61M12-L10
ROTARY ENCODER OPTICAL 12PPR
In Stock : Please Submit RFQ TO US
Need wholesale pricing? Send RFQ now for the best rates and immediate response.
QUICK RFQ
ADD TO RFQ LIST
Tech Specifications
Encoder Type
Optical
PPAP
No
Built in Switch
No
Product Status
Active
RoHS
RoHS Compliant
Automotive
No
Product Length (mm)
17.45
Number of Channels
12
Voltage - Supply
5V
REACH Status
REACH Unaffected
Typical Operating Supply Voltage
5VDC
EU RoHS
Compliant
Shaft Style
Flat
Moisture Sensitivity Level (MSL)
1 (Unlimited)
Termination Style
PC Pin
Terminal Type
PC Pin
ECCN
EAR99
Maximum Operating Supply Voltage
5.25VDC
Rotational Life (Cycles Min)
1M
Orientation
Vertical
Mounting Type
Panel, PCB Through Hole
Mounting
Through Hole
With Switch
With Switch
Shock Rating
100G
Maximum Operating Torque (N.m)
0.028
Pulses per Revolution
12
HTSUS
8543.70.4500
Package
Bulk
USHTS
8543704500
Programmability
No
HTS
8543.90.88.85
Output Type
Binary (Absolute)
ECCN (US)
EAR99
Minimum Operating Temperature (°C)
-40
Maximum Operating Temperature (°C)
85
Detent
Yes
Mfr
Grayhill Inc.
Shaft Diameter (mm)
3.18
Product Depth (mm)
23.72
Mechanical Life (Cycles)
1000000
Motion
Rotary
Actuator Type
1/4" Dia Flatted End
Series
61M
Type
Optically Coupled for Simulated Mechanical Rotary Switch Output
Body Orientation
Straight
Minimum Operating Supply Voltage
4.75VDC
Product Height (mm)
35.28
Part Status
Active
Base Product Number
61M12
