Panasonic

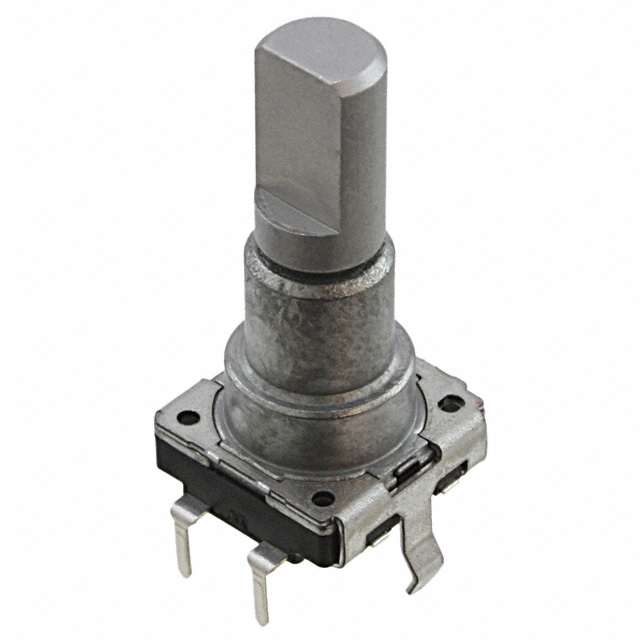

EVE-WRHJR012B
Sensors
EVE-WRHJR012B
54-EVE-WRHJR012B
ROTARY ENCODER MECHANICAL 12PPR
In Stock : 389
Need wholesale pricing? Send RFQ now for the best rates and immediate response.
QUICK RFQ
ADD TO RFQ LIST
- 1+
- $3.12800
- $3.13
- 10+
- $2.86383
- $28.64
- 100+
- $2.68482
- $268.48
- 1000+
- $2.51436
- $2514.36
ADD TO CART
QUICK ORDER
$3.12800
$3.13
Tech Specifications
Unit Weight
0.224676 oz
Product
Magnetic Encoders
Encoder Type
Mechanical
PPAP
No
Built in Switch
Yes
Product Status
Not For New Designs
RoHS
RoHS Compliant
Automotive
No
Product Length (mm)
13.6
Number of Channels
2
Technology
Rotary
Voltage - Supply
10V
Typical Operating Supply Voltage
10VDC
EU RoHS
Compliant
Shaft Style
Flat
Moisture Sensitivity Level (MSL)
Not Applicable
Encoder Signal
Digital Square Wave
Termination Style
PC Pin
Terminal Type
PC Pin
ECCN
EAR99
Rotational Life (Cycles Min)
200K
Orientation
Vertical
Mounting Type
PCB, Through Hole
Mounting
Through Hole
With Switch
Push/Pull Switch
Maximum Operating Torque (N.m)
0.05
Life
200000 Cycle
Pulses per Revolution
12
HTSUS
8543.70.4500
Package
Tray
USHTS
8543704500
Resolution
12 PPR
Programmability
No
HTS
8543.70.98.60
Output Type
Quadrature (Incremental)
ECCN (US)
EAR99
Minimum Operating Temperature (°C)
-40
Maximum Operating Temperature (°C)
85
Number of Detents
24 Detent
Detent
Yes
Mfr
Panasonic Electronic Components
Shaft Diameter (mm)
6
Mechanical Life (Cycles)
200000
RoHS Status
ROHS3 Compliant
Encoder Code
Quadrature
Mounting Style
PCB Mount
Motion
Rotary
Shaft Type
D / Flatted
Actuator Type
6mm Dia Flatted End
Encoder Reading
Incremental
Shaft Diameter
6 mm
Series
-
Type
Incremental
Body Orientation
Straight
Operating Supply Voltage
10 VDC
Product Height (mm)
25
Part Status
NRND
EVE-WRHJR012B Documents
Download datasheets and manufacturer documentation for EVE-WRHJR012B
