Alps Alpine
EC12E1240405
Sensors
EC12E1240405
54-EC12E1240405

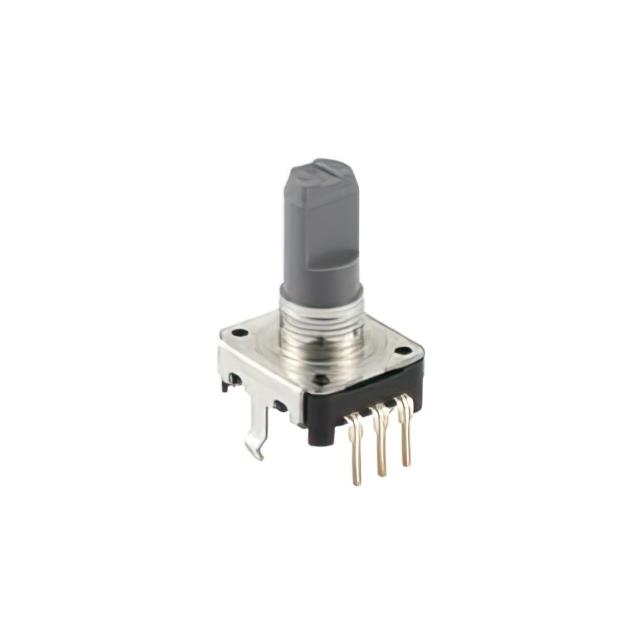

INSULATED SHAFT ENCODERS
In Stock : Please Submit RFQ TO US
Need wholesale pricing? Send RFQ now for the best rates and immediate response.
QUICK RFQ
ADD TO RFQ LIST
Tech Specifications
Unit Weight
0.052205 oz
Product
Encoders
Encoder Type
Incremental
PPAP
Unknown
Built in Switch
No
Product Status
Active
RoHS
RoHS Compliant
Automotive
Unknown
Product Length (mm)
14
Number of Channels
2
Technology
Insulated
Voltage - Supply
5V
Typical Operating Supply Voltage
5VDC
EU RoHS
Compliant
Shaft Style
Flat
Moisture Sensitivity Level (MSL)
1 (Unlimited)
Encoder Signal
Digital Square Wave
Termination Style
PC Pin
Terminal Type
PC Pin
ECCN
EAR99
Rotational Life (Cycles Min)
30K
Orientation
Vertical
Mounting Type
PCB, Through Hole
Mounting
Through Hole
With Switch
Without Switch
Maximum Operating Torque (N.m)
0.003
Pulses per Revolution
12
Package
Tray
USHTS
8543704500
Resolution
12 PPR
Programmability
No
Output Type
Quadrature (Incremental)
ECCN (US)
EAR99
Minimum Operating Temperature (°C)
-10
Shaft Length
20 mm
Maximum Operating Temperature (°C)
70
Number of Detents
12 Detent
Detent
Yes
Mfr
Alps Alpine
Shaft Diameter (mm)
6
Maximum Operating Temperature
+ 70 C
Mechanical Life (Cycles)
30000
RoHS Status
ROHS3 Compliant
Encoder Code
Quadrature
Mounting Style
PCB Mount
Motion
Rotary
Shaft Type
Hollow
Actuator Type
12mm Dia Flatted End
Encoder Reading
Incremental
Shaft Diameter
6 mm
Minimum Operating Temperature
- 10 C
Series
EC12E
Type
Insulated Shaft Encoder
Body Orientation
Straight
Operating Supply Voltage
5 VDC
Product Height (mm)
20
Part Status
Active
EC12E1240405 Documents
Download datasheets and manufacturer documentation for EC12E1240405
