Bourns, Inc.
ESD0D-S00-GE0024L
Sensors
ESD0D-S00-GE0024L
54-ESD0D-S00-GE0024L

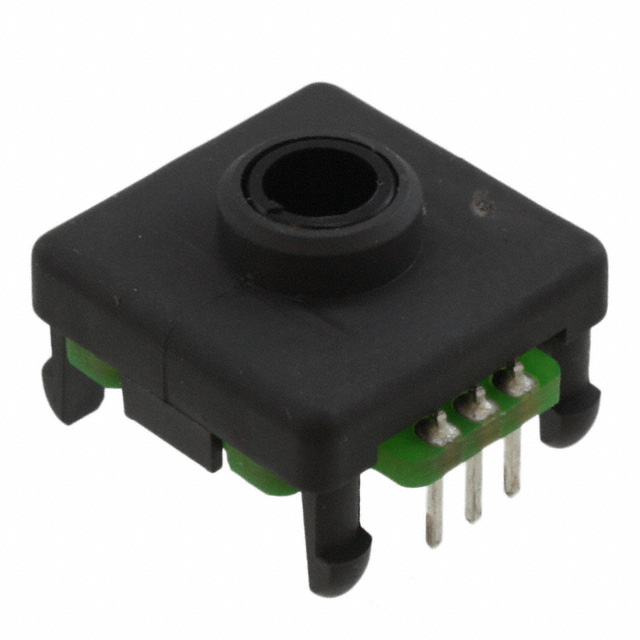

ROTARY ENCODER MECHANICAL 24PPR
In Stock : Please Submit RFQ TO US
Need wholesale pricing? Send RFQ now for the best rates and immediate response.
QUICK RFQ
ADD TO RFQ LIST
Tech Specifications
Unit Weight
0.282192 oz
Product
Mechanical Encoders
Encoder Type
Mechanical
PPAP
No
Built in Switch
No
Maximum Operating Speed
120r/min
Product Status
Active
RoHS
RoHS Compliant
Automotive
No
Product Length (mm)
19.81
Number of Channels
2
Voltage - Supply
-
REACH Status
REACH Unaffected
Typical Operating Supply Voltage
10VDC
EU RoHS
Compliant
Shaft Style
No Shaft
Moisture Sensitivity Level (MSL)
1 (Unlimited)
Encoder Signal
Digital Square Wave
Termination Style
PC Pin
Terminal Type
PC Pin
ECCN
EAR99
Rotational Life (Cycles Min)
200K
Orientation
Vertical
Mounting Type
PCB, Surface Mount
Size / Dimension
20 mm
Mounting
Through Hole
With Switch
Without Switch
Shock Rating
50G
Maximum Operating Torque (N.m)
0.009
Life
200000 Cycle
SVHC
Yes
Pulses per Revolution
24
HTSUS
8543.70.4500
Package
Tray
USHTS
8543704500
Resolution
24 PPR
Programmability
No
HTS
8543.70.45.00
Output Type
Quadrature (Incremental)
ECCN (US)
EAR99
Minimum Operating Temperature (°C)
-40
Maximum Operating Temperature (°C)
85
Number of Detents
No Detent
Detent
No
Mfr
Bourns Inc.
Maximum Operating Temperature
+ 85 C
Mechanical Life (Cycles)
200000
RoHS Status
ROHS3 Compliant
Encoder Code
Quadrature
Mounting Style
Snap In
Motion
Rotary
Shaft Type
No Shaft
Actuator Type
-
Encoder Reading
Incremental
Shaft Diameter
1.98 mm
Minimum Operating Temperature
- 40 C
Series
ES
Type
Shaft Less Contacting Encoder
Body Orientation
Straight
IP Rating
IP40
Product Height (mm)
10.11
Part Status
Active
Base Product Number
ESD0D
ESD0D-S00-GE0024L Documents
Download datasheets and manufacturer documentation for ESD0D-S00-GE0024L
Related Parts
DP09SH3015A25K
TE Connectivity ALCOSWITCH Switches
DFS60B-BHPK10000
SICK
EVE-WRHJR012B
Panasonic
DFS25A-B2C11002000
SICK
25BSR22-Q-1-16C
Grayhill, Inc.
DFS60B-T5AK05000
SICK
PEC11L-4225F-S0015
Bourns, Inc.
DUV60E-32KFAABA
SICK
AFS60A-BHAC262144
SICK
DFS60E-THEA01024
SICK
DFS25A-A1CAD003600
SICK
DFS60B-BJAB04096
SICK
25LR22-H-Z
Grayhill, Inc.
AMT112Q-V-0125
CUI Devices
DP11SVN20A20S
TE Connectivity ALCOSWITCH Switches
DFS60E-S4EM02000
SICK
DFS60S-BHON01024
SICK
MA704GQ-P
Monolithic Power Systems
