Bourns, Inc.
EMS22A50-B28-LS6
Sensors
EMS22A50-B28-LS6
54-EMS22A50-B28-LS6

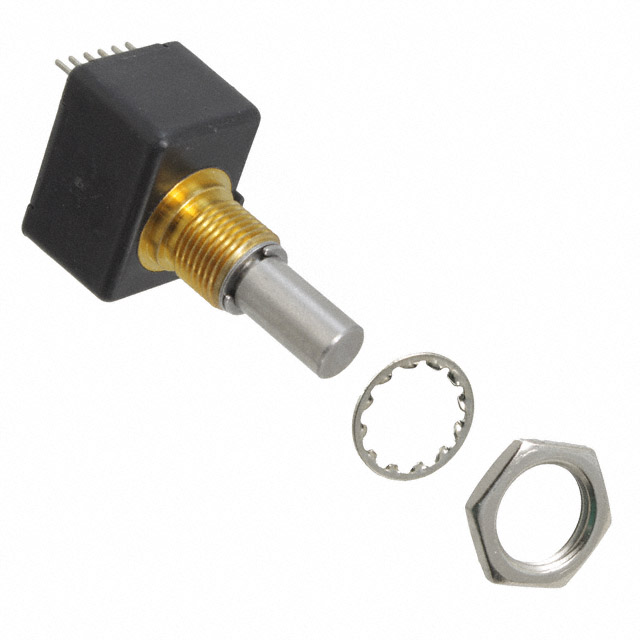

ROTARY ENCODER MAGNETIC 1024PPR
In Stock : 41
Need wholesale pricing? Send RFQ now for the best rates and immediate response.
QUICK RFQ
ADD TO RFQ LIST
- 1+
- $43.18400
- $43.18
- 10+
- $39.67560
- $396.76
- 100+
- $37.11160
- $3711.16
- 1000+
- $35.08730
- $35087.3
ADD TO CART
QUICK ORDER
$43.18400
$43.18
Tech Specifications
Unit Weight
0.388014 oz
Product
Non-Contacting Encoders
Encoder Type
Magnetic
PPAP
Unknown
Built in Switch
-
Maximum Operating Speed
10000r/min
Product Status
Active
RoHS
RoHS Compliant
Automotive
Unknown
Product Length (mm)
15.88
Number of Channels
6
Technology
Magnetic
Voltage - Supply
5V
REACH Status
REACH Affected
Typical Operating Supply Voltage
5VDC
EU RoHS
Compliant with Exemption
Shaft Style
Plain
Moisture Sensitivity Level (MSL)
1 (Unlimited)
Encoder Signal
Digital Square Wave
Termination Style
PC Pin
Terminal Type
PC Pin
ECCN
EAR99
Maximum Operating Supply Voltage
5.5VDC
Rotational Life (Cycles Min)
100M
Orientation
Vertical
Mounting Type
Panel Mount
Size / Dimension
21 mm x 16 mm
Mounting
Bracket Mount
With Switch
Without Switch
Number of Terminals
6
Bushing Size
3/8 in x 3/8 in
Maximum Operating Torque (N.m)
0.004
Life
100000000 Cycle
SVHC
Yes
Pulses per Revolution
1024
HTSUS
8543.70.4500
Package
Tray
USHTS
8543704500
Resolution
1024 PPR
Programmability
No
Bushing Thread
3/8-32 UNEF-2A
HTS
8543.90.88.85
Output Type
Binary (Absolute)
ECCN (US)
EAR99
Minimum Operating Temperature (°C)
-40
Shaft Length
7/8 in
Maximum Operating Temperature (°C)
125
Number of Detents
No Detent
Detent
No
Mfr
Bourns Inc.
Shaft Diameter (mm)
6.35
Product Depth (mm)
21.21
Maximum Operating Temperature
+ 125 C
RoHS Status
ROHS3 Compliant
Encoder Code
CW Absolute
Mounting Style
PCB Mount
Motion
Rotary
Bushing Material
Metal
SVHC Exceeds Threshold
Yes
Shaft Type
Round / Plain
Actuator Type
1/4" Dia Round End
Encoder Reading
Absolute
Shaft Diameter
6.34 mm
Minimum Operating Temperature
- 40 C
Series
EMS22A
Type
Non-Contacting Encoder
Body Orientation
Straight
Minimum Operating Supply Voltage
4.5VDC
IP Rating
IP65
Operating Supply Voltage
5 VDC
Product Height (mm)
45.65
Part Status
Active
Base Product Number
EMS22A50
