Bourns, Inc.
3315Y-025-006L
Sensors
3315Y-025-006L
54-3315Y-025-006L

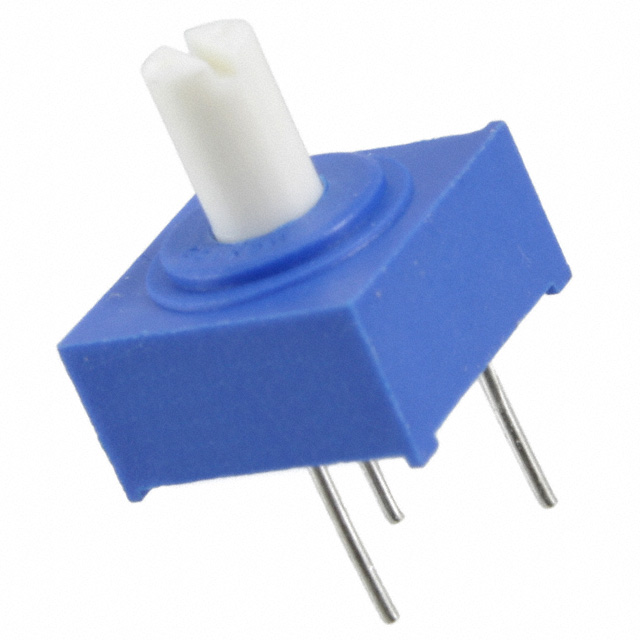

ROTARY ENCODER MECHANICAL 6PPR
In Stock : Please Submit RFQ TO US
Need wholesale pricing? Send RFQ now for the best rates and immediate response.
QUICK RFQ
ADD TO RFQ LIST
Tech Specifications
Unit Weight
0.038801 oz
Product
Mechanical Encoders
Encoder Type
Mechanical
PPAP
No
Built in Switch
No
Maximum Operating Speed
120r/min
Product Status
Active
Automotive
No
Tradename
Pro Audio
Product Length (mm)
9.53
Number of Channels
3
Technology
Rotary
Voltage - Supply
-
REACH Status
REACH Unaffected
EU RoHS
Compliant with Exemption
Shaft Style
Slot
Moisture Sensitivity Level (MSL)
1 (Unlimited)
Encoder Signal
Digital Square Wave
Termination Style
PC Pin
Terminal Type
PC Pin
ECCN
EAR99
Rotational Life (Cycles Min)
100K
Orientation
Vertical
Mounting Type
PCB, Through Hole
Size / Dimension
9 mm
Mounting
Through Hole
With Switch
Without Switch
Bushing Size
1/4 in X 1/4 in
Shock Rating
100G
Maximum Operating Torque (N.m)
0.035
Life
100000 Cycle
Pulses per Revolution
6
HTSUS
8543.70.4500
Package
Tray
USHTS
8543704500
Resolution
6 PPR
Programmability
No
Bushing Thread
-
HTS
8543.70.45.00
Output Type
Quadrature (Incremental)
ECCN (US)
EAR99
Minimum Operating Temperature (°C)
-40
Shaft Length
5.59 mm
Maximum Operating Temperature (°C)
125
Number of Detents
No Detent
Detent
No
Mfr
Bourns Inc.
Shaft Diameter (mm)
3.18
Product Depth (mm)
9.53
Maximum Operating Temperature
+ 125 C
Mechanical Life (Cycles)
100000
RoHS Status
ROHS3 Compliant
Encoder Code
Quadrature
Mounting Style
Panel Mount
Motion
Rotary
Bushing Material
-
Shaft Type
Slotted
Actuator Type
1/8" Dia Slotted End
Encoder Reading
Incremental
Shaft Diameter
1/8 in
Minimum Operating Temperature
- 40 C
Series
3315
Type
Square Encoder
Body Orientation
Straight
IP Rating
IP67
Operating Supply Voltage
-
Product Height (mm)
10.77
Part Status
Active
Base Product Number
3315Y
3315Y-025-006L Documents
Download datasheets and manufacturer documentation for 3315Y-025-006L
