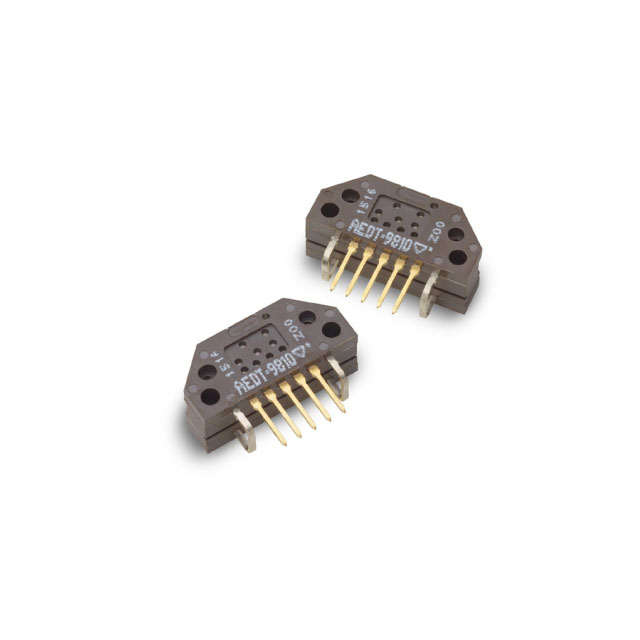

ROTARY ENCODER OPTICAL 2500PPR
In Stock : 291

Need wholesale pricing? Send RFQ now for the best rates and immediate response.

QUICK RFQ
ADD TO RFQ LIST
ampheo flow
  • Quantity
  • Unit Price
  • Ext. Price
    • 1+
    • $28.20720
    • $28.21
    • 10+
    • $26.37560
    • $263.76
    • 100+
    • $24.72710
    • $2472.71
    • 1000+
    • $23.81127
    • $23811.27
    ADD TO CART
    QUICK ORDER
    $28.20720    $28.21
    Description Tech Specifications Documents Shopping Guide

    Tech Specifications

    Unit Weight
    0.336178 oz
    Bushing Thread
    -
    Output Type
    Quadrature with Index (Incremental)
    Product
    Optical Encoders
    Encoder Type
    Optical
    Built in Switch
    No
    Product Status
    Active
    RoHS
    RoHS Compliant
    Shaft Length
    -
    Number of Detents
    No Detent
    Number of Channels
    3 Channel
    Technology
    Rotary
    Voltage - Supply
    4.5V ~ 5.5V
    Detent
    No
    REACH Status
    REACH Unaffected
    Mfr
    Broadcom Limited
    Maximum Operating Temperature
    + 115 C
    RoHS Status
    ROHS3 Compliant
    Moisture Sensitivity Level (MSL)
    1 (Unlimited)
    Mounting Style
    PCB Mount
    Bushing Material
    -
    Termination Style
    Terminal Pins
    Shaft Type
    No Shaft
    Actuator Type
    Codewheel Not Included
    ECCN
    EAR99
    Shaft Diameter
    -
    Rotational Life (Cycles Min)
    -
    Orientation
    User Selectable
    Mounting Type
    Chassis Mount
    Size / Dimension
    26.42 mm x 10.16 mm x 20.7 mm
    Minimum Operating Temperature
    - 40 C
    Series
    AEDT-981x
    Type
    Incremental
    With Switch
    Without Switch
    Operating Supply Voltage
    5 VDC
    Pulses per Revolution
    2500
    HTSUS
    8543.70.4500
    Package
    Tube
    Accessory Type
    -
    USHTS
    8543704500
    Resolution
    2500 PPR
    Base Product Number
    AEDT-9810
