Bourns, Inc.

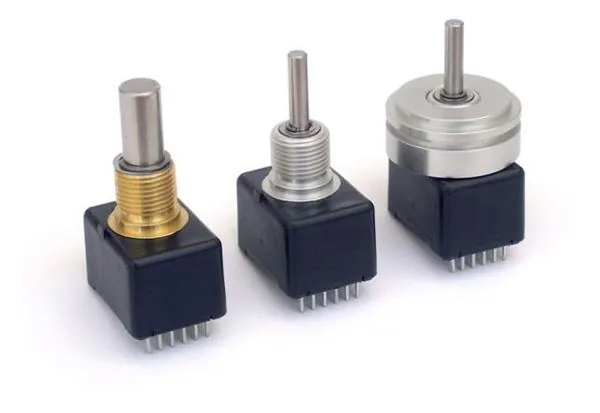

EMS22Q51-D16-LT3
Sensors
EMS22Q51-D16-LT3
54-EMS22Q51-D16-LT3
ROTARY ENCODER MAGNETIC 128PPR
In Stock : Please Submit RFQ TO US
Need wholesale pricing? Send RFQ now for the best rates and immediate response.
QUICK RFQ
ADD TO RFQ LIST
Tech Specifications
Unit Weight
0.388014 oz
Bushing Thread
3/8-32 UNEF-2A
Output Type
Quadrature (Incremental)
Product
Magnetic Encoders
Encoder Type
Magnetic
Built in Switch
-
Product Status
Active
Shaft Length
1/2 in
Number of Detents
No Detent
Number of Channels
3 Channel
Technology
Magnetic
Voltage - Supply
5V
Detent
No
REACH Status
REACH Affected
Mfr
Bourns Inc.
Maximum Operating Temperature
+ 125 C
RoHS Status
ROHS3 Compliant
Moisture Sensitivity Level (MSL)
1 (Unlimited)
Mounting Style
PCB Mount
Bushing Material
Metal
Termination Style
PC Pin
Shaft Type
Round / Plain
Actuator Type
1/8" Dia Round End
ECCN
EAR99
Shaft Diameter
1/8 in
Rotational Life (Cycles Min)
50M
Orientation
Vertical
Mounting Type
Panel Mount
Size / Dimension
21 mm x 16 mm
Minimum Operating Temperature
- 40 C
Series
EMS22Q
Type
Incremental
With Switch
Without Switch
Bushing Size
3/8 in x 3/8 in
Operating Supply Voltage
5 VDC
Pulses per Revolution
128
HTSUS
8543.70.4500
Package
Tray
USHTS
8543704500
Resolution
128 PPR
Base Product Number
EMS22Q51
EMS22Q51-D16-LT3 Documents
Download datasheets and manufacturer documentation for EMS22Q51-D16-LT3
