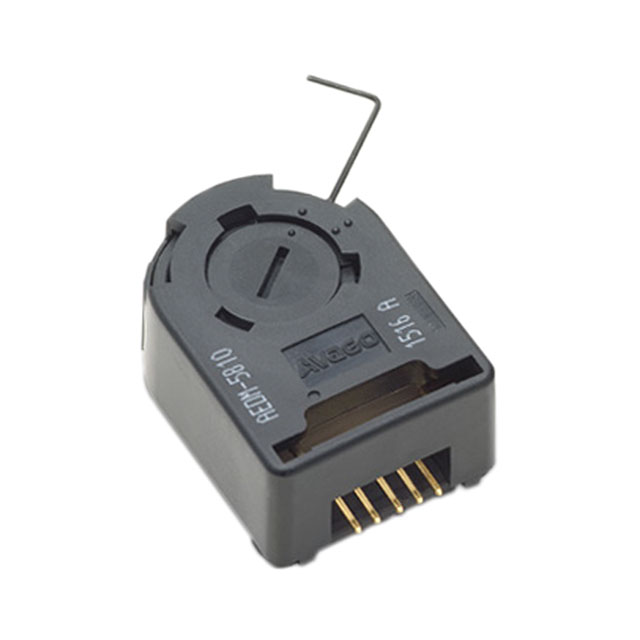

Broadcom_AEDM-5810-Z12
Broadcom_AEDM-5810-Z12
Broadcom

AEDM-5810-Z12

Sensors
Broadcom
AEDM-5810-Z12
54-AEDM-5810-Z12
Broadcom-AEDM-5810-Z12-datasheet-679743.pdf
Broadcom-AEDM-5810-Z12-datasheets-679743.pdf
ROTARY ENCODER OPTICAL 5000PPR
In Stock : 57

Need wholesale pricing? Send RFQ now for the best rates and immediate response.

QUICK RFQ
ADD TO RFQ LIST
ampheo flow
  • Quantity
  • Unit Price
  • Ext. Price
    • 1+
    • $60.62000
    • $60.62
    • 10+
    • $58.93720
    • $589.37
    • 100+
    • $48.83380
    • $4883.38
    ADD TO CART
    QUICK ORDER
    $60.62000    $60.62
    Description Tech Specifications Documents Shopping Guide

    Tech Specifications

    Unit Weight
    5.600094 oz
    Output Type
    Quadrature with Index (Incremental)
    Product
    Kits
    Encoder Type
    Optical
    Built in Switch
    No
    Product Status
    Active
    RoHS
    RoHS Compliant
    Number of Detents
    No Detent
    Number of Channels
    3 Channel
    Technology
    -
    Voltage - Supply
    4.5V ~ 5.5V
    Detent
    No
    REACH Status
    REACH Unaffected
    Mfr
    Broadcom Limited
    Maximum Operating Temperature
    + 85 C
    RoHS Status
    ROHS3 Compliant
    Moisture Sensitivity Level (MSL)
    1 (Unlimited)
    Mounting Style
    Panel Mount
    Termination Style
    Terminal Pins
    Shaft Type
    -
    Actuator Type
    Hole for Shaft
    ECCN
    EAR99
    Shaft Diameter
    6 mm
    Rotational Life (Cycles Min)
    -
    Orientation
    Right Angle
    Mounting Type
    Chassis Mount, Motors
    Size / Dimension
    41.1 mm x 30 mm x 18.3 mm
    Minimum Operating Temperature
    - 40 C
    Series
    AEDM
    Type
    Incremental
    With Switch
    Without Switch
    IP Rating
    -
    Operating Supply Voltage
    5 VDC
    Life
    -
    Pulses per Revolution
    5000
    HTSUS
    8543.70.4500
    Package
    Bulk
    USHTS
    8543704500
    Resolution
    5000 CPR
    Base Product Number
    AEDM-5810

    AEDM-5810-Z12 Documents

    Download datasheets and manufacturer documentation for AEDM-5810-Z12
