Grayhill, Inc.

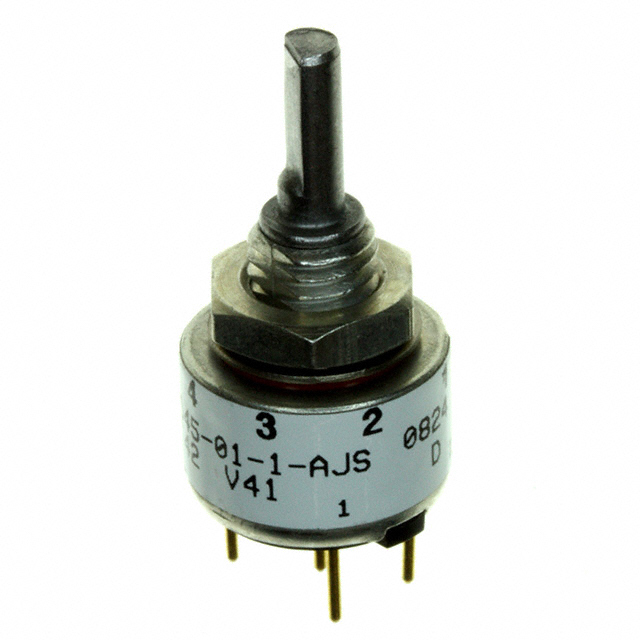

26GSD45-01-1-AJS
Sensors
26GSD45-01-1-AJS
54-26GSD45-01-1-AJS
ROTARY ENCODER MECHANICAL 8PPR
In Stock : 120
Need wholesale pricing? Send RFQ now for the best rates and immediate response.
QUICK RFQ
ADD TO RFQ LIST
- 1+
- $39.47600
- $39.48
- 10+
- $36.91260
- $369.13
- 100+
- $34.60560
- $3460.56
- 1000+
- $33.32392
- $33323.92
ADD TO CART
QUICK ORDER
$39.47600
$39.48
Tech Specifications
Unit Weight
0.705479 oz
Product
Optical Encoders
Encoder Type
Mechanical
PPAP
No
Built in Switch
No
Product Status
Active
Automotive
No
Product Length (mm)
12.7
Number of Channels
4
Technology
Mechanical
Voltage - Supply
-
REACH Status
REACH Unaffected
EU RoHS
Compliant
Shaft Style
Flat
Moisture Sensitivity Level (MSL)
1 (Unlimited)
Termination Style
PC Pin
Terminal Type
PC Pin
ECCN
EAR99
Rotational Life (Cycles Min)
25K
Orientation
Vertical
Mounting Type
Panel, PCB Through Hole
Size / Dimension
1/2 in
Mounting
Through Hole
With Switch
Without Switch
Bushing Size
1/4 in x 1/4 in
Maximum Operating Torque (N.m)
0.056
Life
25000 Cycle
Pulses per Revolution
8
HTSUS
8543.70.4500
Package
Bulk
USHTS
8543704500
Resolution
8 PPR
Programmability
No
Bushing Thread
1/4-28 UNF-2A
Output Type
Gray Code (Absolute)
ECCN (US)
EAR99
Shaft Length
3/8 in
Number of Detents
8 Detent
Detent
Yes
Mfr
Grayhill Inc.
Shaft Diameter (mm)
3.18
Product Depth (mm)
12.7
Maximum Operating Temperature
+ 85 C
RoHS Status
RoHS Compliant
Encoder Code
Gray
Mounting Style
PCB Mount
Motion
Rotary
Bushing Material
Metal
Shaft Type
D / Flatted
Actuator Type
1/8" Dia Flatted End
Shaft Diameter
3.18 mm
Minimum Operating Temperature
- 40 C
Series
26
Type
Absolute
Body Orientation
Straight
Product Height (mm)
24.31
Part Status
Active
Number of Decks
1
Base Product Number
26GSD45
26GSD45-01-1-AJS Documents
Download datasheets and manufacturer documentation for 26GSD45-01-1-AJS
