TDK-Lambda, Inc.

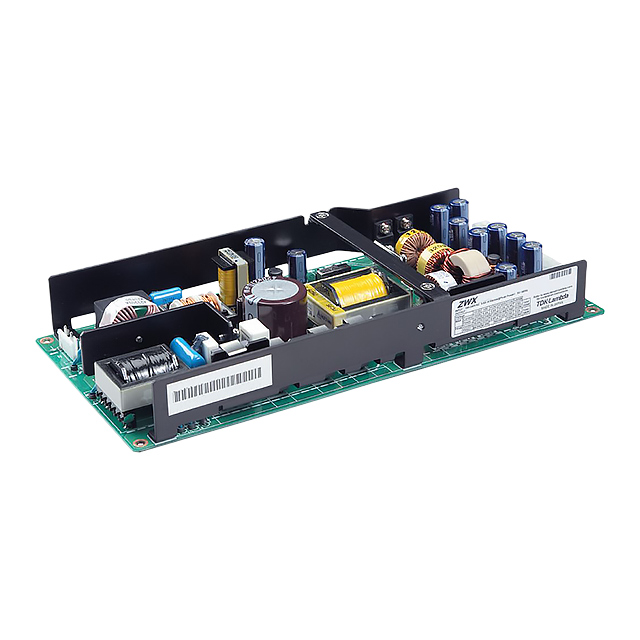

ZWX240
External/Internal AC DC Converters
ZWX240
47-ZWX240
AC/DC CNVRTR 3.3V 5V +/-12V 120W
In Stock : Please Submit RFQ TO US
Need wholesale pricing? Send RFQ now for the best rates and immediate response.
QUICK RFQ
ADD TO RFQ LIST
ZWX240 Description
Open Frame AC DC Converters 4 Output 3.3V 5V 12V -12V 85 ~ 265 VAC Input
Tech Specifications
Efficiency
81%
Mfr
TDK-Lambda
Features
PFC, Remote On/Off, Remote Sense, Universal Input
RoHS Status
RoHS Compliant
Voltage - Input
85 ~ 265 VAC
Moisture Sensitivity Level (MSL)
1 (Unlimited)
Voltage - Output 6
-
Operating Temperature
-10°C ~ 70°C (With Derating)
Applications
ITE (Commercial)
Voltage - Output 2
5V
Voltage - Output 3
12V
Voltage - Output 4
-12V
Voltage - Isolation
3 kV
Approval Agency
CE
Minimum Load Required
No
ECCN
EAR99
Voltage - Output 1
3.3V
Mounting Type
Chassis Mount
Size / Dimension
8.86" L x 4.17" W x 1.38" H (225.0mm x 106.0mm x 35.0mm)
Number of Outputs
4
Current - Output 2
6 A
Series
ZWX (240W)
Power (Watts)
120W (204W Forced Air)
Current - Output 1
7 A
Type
Open Frame
Current - Output 4
200 mA
Current - Output 3
8 A
Packaging
Bulk
Part Status
Obsolete
HTSUS
8504.40.9530
