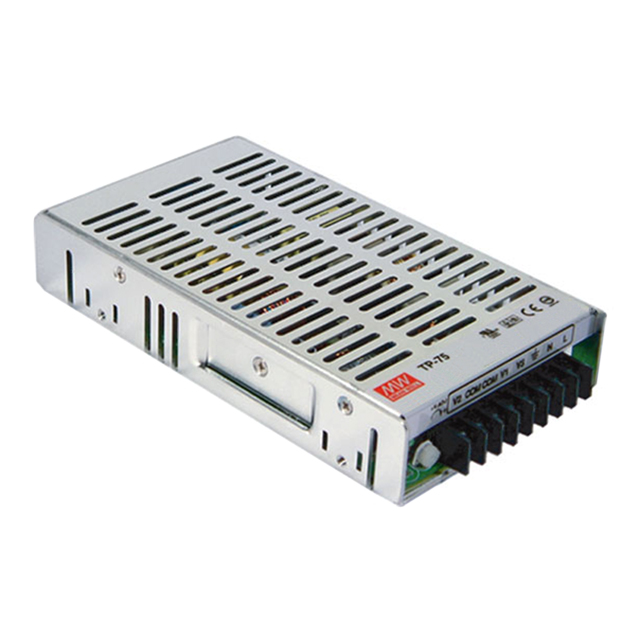

MEAN WELL
TP-7503
External/Internal AC DC Converters
TP-7503
47-TP-7503
AC/DC CONVERTER 5V 3.3V 12V 75W
In Stock : Please Submit RFQ TO US
Need wholesale pricing? Send RFQ now for the best rates and immediate response.
QUICK RFQ
ADD TO RFQ LIST
TP-7503 Description
Enclosed AC DC Converters 3 Output 5V 3.3V 12V 90 ~ 264 VAC, 127 ~ 370 VDC Input
Tech Specifications
Efficiency
70%
REACH Status
REACH Unaffected
Mfr
MEAN WELL USA Inc.
Features
Adjustable Output, PFC, Universal Input
RoHS Status
ROHS3 Compliant
Voltage - Input
90 ~ 264 VAC, 127 ~ 370 VDC
Moisture Sensitivity Level (MSL)
1 (Unlimited)
Voltage - Output 6
-
Operating Temperature
-10°C ~ 60°C (With Derating)
Applications
ITE (Commercial)
Voltage - Output 2
3.3V
Voltage - Output 3
12V
Voltage - Output 4
-
Voltage - Isolation
3 kV
Approval Agency
CB, CE, cURus, TUV
Minimum Load Required
Yes
ECCN
EAR99
Voltage - Output 1
5V
Mounting Type
Chassis Mount
Size / Dimension
7.05" L x 3.90" W x 1.30" H (179.0mm x 99.0mm x 33.0mm)
Number of Outputs
3
Current - Output 2
8 A
Series
TP-75 (75W)
Power (Watts)
75W
Current - Output 1
9 A
Type
Enclosed
Current - Output 3
300 mA
Packaging
Box
Part Status
Obsolete
HTSUS
8504.40.9520
TP-7503 Documents
Download datasheets and manufacturer documentation for TP-7503
