Vishay

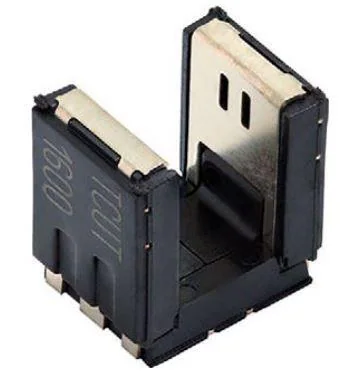

TCUT1600X01_A
Sensors
TCUT1600X01_A
54-TCUT1600X01_A
Optical Switches, Transmissive, Phototransistor Output Dual Chnl 1.6mA AEC-Q101 Qualified
In Stock : 12308
Need wholesale pricing? Send RFQ now for the best rates and immediate response.
QUICK RFQ
ADD TO RFQ LIST
Tech Specifications
Unit Weight
0.011887 oz
Output Type
Phototransistor
Sensing Distance
3 mm
Maximum Collector Current
20 mA
Sensing Method
Transmissive, Slotted
Fall Time
16 us
RoHS
RoHS Compliant
Vf - Forward Voltage
1.2 V
Vr - Reverse Voltage
5 V
Number of Channels
2 Channel
Height
5.7 mm
Maximum Operating Temperature
+ 105 C
If - Forward Current
15 mA
Width
4 mm
Slot Width
3 mm
Mounting Style
SMD/SMT
Aperture Width
0.3 mm
Termination Style
SMD/SMT
ECCN
EAR99
Wavelength
950 nm
Minimum Operating Temperature
- 40 C
Qualification
AEC-Q100
Rise Time
9 us
Length
5.5 mm
Collector- Emitter Voltage VCEO Max
20 V
Package
Reel
Pd - Power Dissipation
37.5 mW
USHTS
8541498000
