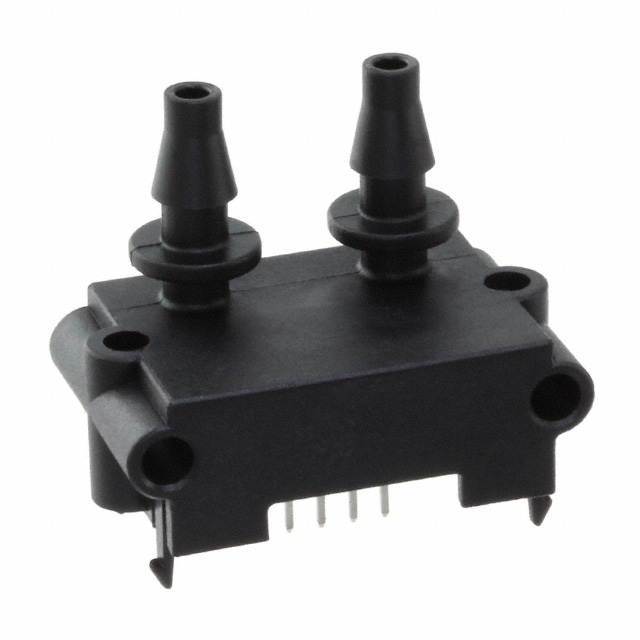

Sensirion_SDP816-500PA
Sensirion_SDP816-500PA
Sensirion

SDP816-500PA

Sensors
Sensirion
SDP816-500PA
54-SDP816-500PA
Sensirion-SDP816-500PA-datasheet-726428.pdf
Sensirion-SDP816-500PA-datasheets-726428.pdf
SENSOR 0.07PSID 0.2" 4.5V
In Stock : 284

Need wholesale pricing? Send RFQ now for the best rates and immediate response.

QUICK RFQ
ADD TO RFQ LIST
ampheo flow
  • Quantity
  • Unit Price
  • Ext. Price
    • 1+
    • $29.25986
    • $29.26
    • 10+
    • $28.43849
    • $284.38
    • 30+
    • $27.01598
    • $810.48
    ADD TO CART
    QUICK ORDER
    $29.25986    $29.26
    Description Tech Specifications Documents Shopping Guide

    Tech Specifications

    Operating Pressure
    -0.07PSI ~ 0.07PSI (-0.5kPa ~ 0.5kPa)
    Unit Weight
    1 oz
    Device Pressure Type
    Differential
    PPAP
    No
    Pressure Type
    Differential
    Product Status
    Active
    RoHS
    RoHS Compliant
    Automotive
    No
    Port Type
    Dual Axial Barbless
    Tradename
    CMOSens
    Package / Case
    Module
    Voltage - Supply
    3V ~ 5.5V
    REACH Status
    REACH Unaffected
    Response Time (ms)
    5
    Maximum Operating Supply Voltage (V)
    5.5
    EU RoHS
    Compliant
    Moisture Sensitivity Level (MSL)
    1 (Unlimited)
    Operating Temperature
    -20°C ~ 85°C
    Termination Style
    -
    Port Size
    Male - 0.2" (5.2mm) Tube, Dual
    Media
    Air|Gas
    ECCN
    EAR99
    Operating Pressure Range
    -0.05kPa to 0.5kPa
    Pin Count
    4
    Mounting
    Screw
    Output Voltage (V)
    0.1 to 0.9
    Typical Operating Supply Voltage (V)
    3.3|5
    HTSUS
    9026.20.4000
    Package
    Tray
    USHTS
    9026204000
    Resolution
    16 bit
    Maximum Overload Pressure
    1bar
    PCB changed
    4
    HTS
    9026.20.40.00
    Output Type
    Analog Voltage
    ECCN (US)
    EAR99
    Port Style
    Barbed
    Supply Voltage - Min
    2.7 V
    Supplier Device Package
    -
    Minimum Operating Temperature (°C)
    -40
    Maximum Operating Temperature (°C)
    85
    Accuracy
    ±3%
    Output
    0.5 V ~ 4.5 V
    Package Height
    27.05
    Mfr
    Sensirion AG
    Features
    Temperature Compensated
    Maximum Operating Temperature
    + 85 C
    Supply Voltage - Max
    5.5 V
    Interface Type
    I2C
    RoHS Status
    ROHS3 Compliant
    Mounting Style
    Through Hole
    Applications
    Board Mount
    Equivalent Overload Pressure Range (psi)
    <20
    Package Length
    29
    Maximum Supply Current (mA)
    5.5
    Minimum Operating Temperature
    - 40 C
    Series
    SDP800
    Operating Supply Voltage
    2.7 V to 5.5 V
    Part Status
    Active
    Package Width
    18
    Maximum Pressure
    14.5PSI (100kPa)
    Minimum Operating Supply Voltage (V)
    3

    SDP816-500PA Documents

    Download datasheets and manufacturer documentation for SDP816-500PA
