Bourns, Inc.

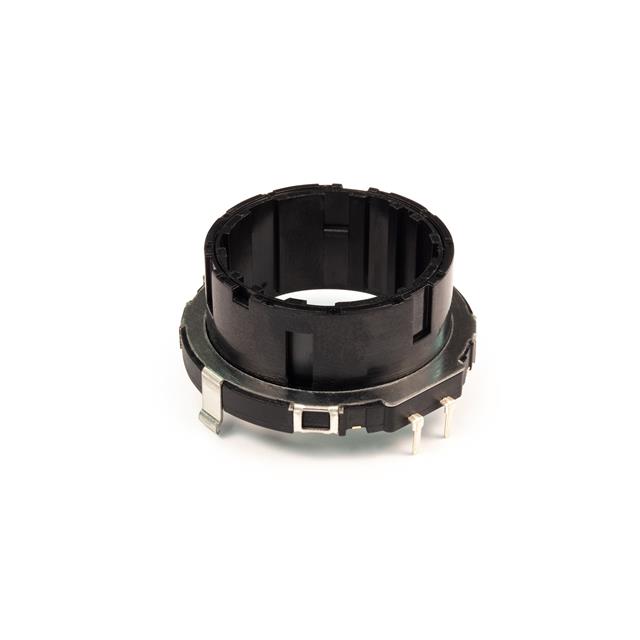

PER351-P115-N0010

Name: PER351-P115-N0010
Brand: Bourns, Inc.
SKU: 54-PER351-P115-N0010
Availability: InStock
Rating: 4.7 (7 reviews)

Sensors

Manufacturer Bourns, Inc.

Mfr. Part #: PER351-P115-N0010

Apmheo Part #: 54-PER351-P115-N0010

Datasheet:

Bourns, Inc.-PER351-P115-N0010-datasheets-679947.pdf

Description: 35MM LOW PROFILE INCREMENT-RING

In Stock : 2161

Need wholesale pricing? Send RFQ now for the best rates and immediate response.

QUICK RFQ

ADD TO RFQ LIST

Quantity

Unit Price

Ext. Price

1+
$3.15750
$3.16

10+
$2.89280
$28.93

100+
$2.71318
$271.32

1000+
$2.54302
$2543.02

ADD TO CART

QUICK ORDER

Unit Price： $3.15750 Subtotal： $3.16

Unit Weight

0.187305 oz

Product

Ring Encoders

Encoder Type

Incremental

PPAP

No

Built in Switch

No

Maximum Operating Speed

60r/min

Product Status

Active

RoHS

RoHS Compliant

Automotive

No

Product Length (mm)

36.5

Number of Channels

3

Technology

Rotary

Voltage - Supply

-

REACH Status

REACH Unaffected

Typical Operating Supply Voltage

5VDC

EU RoHS

Compliant

Shaft Style

Hollow

Moisture Sensitivity Level (MSL)

1 (Unlimited)

Encoder Signal

Digital Square Wave

Termination Style

PC Pin

Terminal Type

PC Pin

ECCN

EAR99

Rotational Life (Cycles Min)

50K

Orientation

Vertical

Mounting Type

PCB, Through Hole

Mounting

Through Hole

With Switch

Without Switch

Maximum Operating Torque (N.m)

0.02

Life

50000 Cycle

SVHC

Yes

Pulses per Revolution

10

HTSUS

8543.70.4500

Package

Tray

USHTS

8543704500

Resolution

10 PPR

Programmability

No

HTS

8543.70.98.60

Output Type

Quadrature, 2-Bit

ECCN (US)

EAR99

Minimum Operating Temperature (°C)

-30

Maximum Operating Temperature (°C)

80

Number of Detents

30 Detent

Detent

Yes

Mfr

Bourns Inc.

Product Depth (mm)

37

Maximum Operating Temperature

+ 80 C

Mechanical Life (Cycles)

50000

RoHS Status

ROHS3 Compliant

Encoder Code

Quadrature

Mounting Style

PCB Mount

Motion

Rotary

Shaft Type

No Shaft

Actuator Type

Hole for Shaft

Encoder Reading

Incremental

Shaft Diameter

-

Minimum Operating Temperature

- 30 C

Series

PER35

Type

Low Profile Ring Encoder

Body Orientation

Straight

IP Rating

IP40

Operating Supply Voltage

5 VDC

Product Height (mm)

15

Part Status

Active
