Bourns, Inc.
PEL12D-4018F-S1024
Sensors
PEL12D-4018F-S1024
54-PEL12D-4018F-S1024

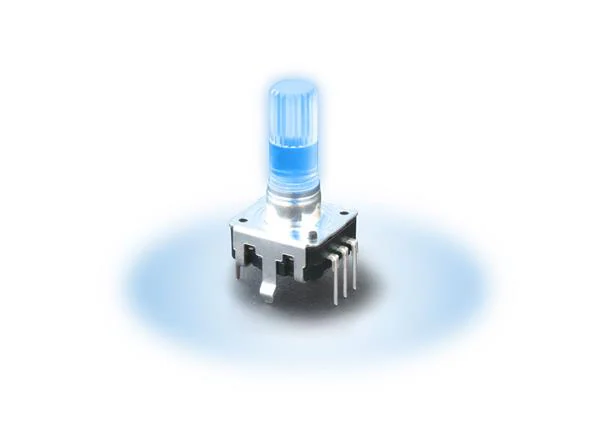

ROTARY ENCODER MECHANICAL 24PPR
In Stock : Please Submit RFQ TO US
Need wholesale pricing? Send RFQ now for the best rates and immediate response.
QUICK RFQ
ADD TO RFQ LIST
Tech Specifications
Unit Weight
0.105822 oz
Bushing Thread
-
Output Type
Quadrature (Incremental)
Product
Mechanical Encoders
Encoder Type
Mechanical
Built in Switch
Yes
Product Status
Active
RoHS
RoHS Compliant
Shaft Length
18.5 mm
Tradename
Pro Audio
Number of Detents
No Detent
Number of Channels
2 Channel
Technology
Rotary
Voltage - Supply
-
Detent
No
REACH Status
REACH Unaffected
Mfr
Bourns Inc.
Maximum Operating Temperature
+ 70 C
RoHS Status
ROHS3 Compliant
Moisture Sensitivity Level (MSL)
1 (Unlimited)
Mounting Style
Panel Mount
Bushing Material
-
Termination Style
PC Pin
Shaft Type
D / Flatted
Actuator Type
6mm Dia Flatted End, Illuminated
ECCN
EAR99
Shaft Diameter
6 mm
Rotational Life (Cycles Min)
30K
Orientation
Vertical
Mounting Type
PCB, Through Hole
Size / Dimension
12 mm
Minimum Operating Temperature
- 10 C
Series
PEL12D
Type
Incremental
With Switch
With Switch
Bushing Size
-
Operating Supply Voltage
-
Life
30000 Cycle
Pulses per Revolution
24
HTSUS
8543.70.4500
Package
Tray
USHTS
8543704500
Resolution
24 PPR
Base Product Number
PEL12D
PEL12D-4018F-S1024 Documents
Download datasheets and manufacturer documentation for PEL12D-4018F-S1024
