Bourns, Inc.

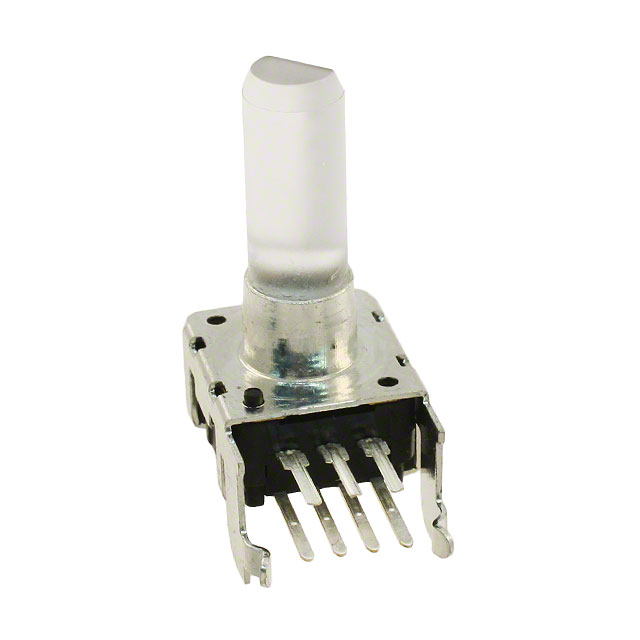

PEL12D-2226F-S3024
Sensors
PEL12D-2226F-S3024
54-PEL12D-2226F-S3024
ROTARY ENCODER MECHANICAL 24PPR
In Stock : Please Submit RFQ TO US
Need wholesale pricing? Send RFQ now for the best rates and immediate response.
QUICK RFQ
ADD TO RFQ LIST
Tech Specifications
Unit Weight
0.105822 oz
Bushing Thread
-
Output Type
Quadrature (Incremental)
Product
Contacting Encoders
Encoder Type
Mechanical
Built in Switch
Yes
Product Status
Active
RoHS
RoHS Compliant
Shaft Length
26 mm
Tradename
Pro Audio
Number of Detents
24 Detent
Number of Channels
2 Channel
Technology
Rotary
Voltage - Supply
-
Detent
Yes
REACH Status
REACH Unaffected
Mfr
Bourns Inc.
Maximum Operating Temperature
+ 70 C
RoHS Status
ROHS3 Compliant
Moisture Sensitivity Level (MSL)
1 (Unlimited)
Mounting Style
PCB Mount
Bushing Material
-
Termination Style
PC Pin
Shaft Type
D / Flatted
Actuator Type
6mm Dia Flatted End, Illuminated
ECCN
EAR99
Shaft Diameter
6 mm
Rotational Life (Cycles Min)
30K
Orientation
Right Angle
Mounting Type
PCB, Through Hole
Size / Dimension
12 mm
Minimum Operating Temperature
- 10 C
Series
PEL12D
Type
Incremental
With Switch
Push/Pull Switch
Bushing Size
-
IP Rating
IP40
Operating Supply Voltage
5 VDC
Life
30000 Cycle
Pulses per Revolution
24
HTSUS
8543.70.4500
Package
Tray
USHTS
8543704500
Resolution
24 PPR
Base Product Number
PEL12D
