Bourns, Inc.

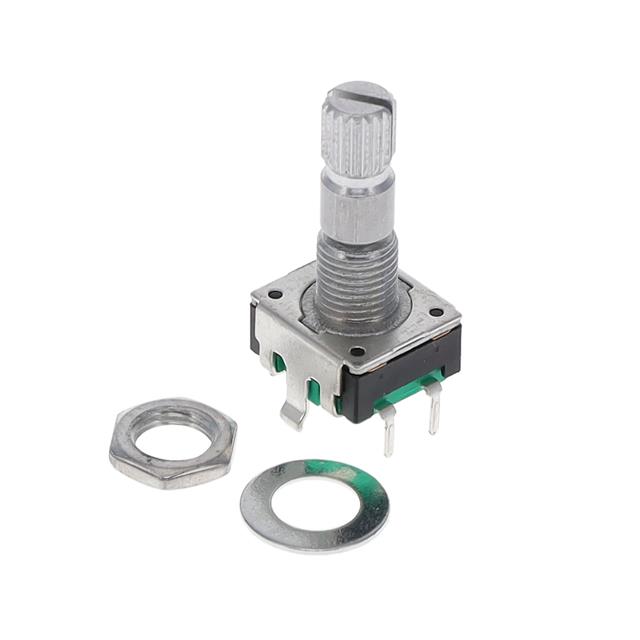

PEC11R-4320K-S0012
Sensors
PEC11R-4320K-S0012
54-PEC11R-4320K-S0012
ROTARY ENCODER
In Stock : 870
Need wholesale pricing? Send RFQ now for the best rates and immediate response.
QUICK RFQ
ADD TO RFQ LIST
- 1+
- $1.44193
- $1.44
- 10+
- $1.32010
- $13.2
- 100+
- $1.23760
- $123.76
- 1000+
- $1.15903
- $1159.03
ADD TO CART
QUICK ORDER
$1.44193
$1.44
Tech Specifications
Unit Weight
0.143507 oz
Product
Contacting Encoders
PPAP
No
Maximum Operating Speed
60r/min
Product Status
Active
RoHS
RoHS Compliant
Automotive
No
Tradename
Pro Audio
Product Length (mm)
14
Number of Channels
2
Technology
Rotary
REACH Status
REACH Unaffected
Typical Operating Supply Voltage
5VDC
EU RoHS
Compliant
Shaft Style
Knurl
Moisture Sensitivity Level (MSL)
Not Applicable
Encoder Signal
Digital Square Wave
Termination Style
PC Pin
Terminal Type
PC Pin
ECCN
EAR99
Size / Dimension
12 mm
Mounting
Through Hole
With Switch
Push/Pull Switch
Bushing Size
7 mm x 7mm
Shock Rating
100G
Maximum Operating Torque (N.m)
0.007
Life
30000 Cycle
Pulses per Revolution
12
HTSUS
8543.70.4500
Package
Tray
USHTS
8543704500
Resolution
12 PPR
Programmability
No
Bushing Thread
M7 x 0.75
Output Type
Quadrature
ECCN (US)
EAR99
Minimum Operating Temperature (°C)
-30
Shaft Length
20 mm
Maximum Operating Temperature (°C)
70
Number of Detents
12 Detent
Mfr
Bourns Inc.
Shaft Diameter (mm)
6
Maximum Operating Temperature
+ 70 C
Mechanical Life (Cycles)
30000
RoHS Status
ROHS3 Compliant
Encoder Code
Quadrature
Mounting Style
PCB Mount
Motion
Rotary
Bushing Material
Metal
Shaft Type
Knurled
Encoder Reading
Incremental
Shaft Diameter
6 mm
Minimum Operating Temperature
- 30 C
Series
PEC11R
Type
Incremental
Body Orientation
Straight
IP Rating
IP44
Operating Supply Voltage
5 VDC
Product Height (mm)
26.5
Accessory Type
-
Base Product Number
PEC11R
