Bourns, Inc.

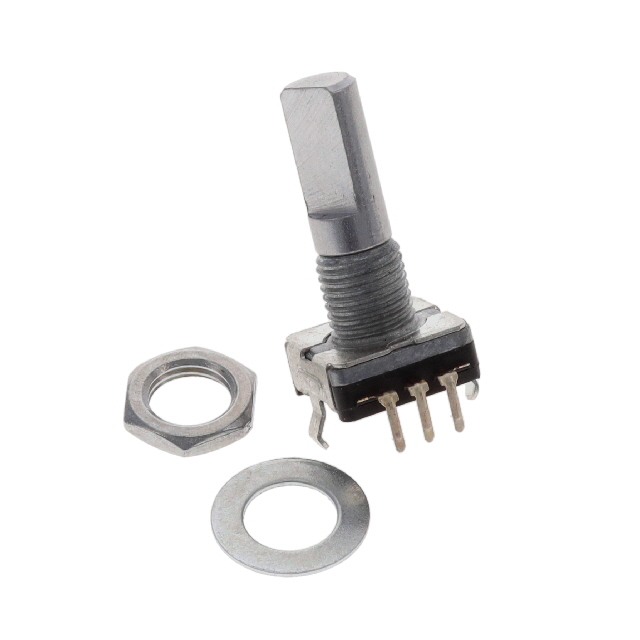

PEC11L-4020F-N0020

Name: PEC11L-4020F-N0020
Brand: Bourns, Inc.
SKU: 54-PEC11L-4020F-N0020
Availability: InStock
Rating: 4.8 (6 reviews)

Sensors

Manufacturer Bourns, Inc.

Mfr. Part #: PEC11L-4020F-N0020

Apmheo Part #: 54-PEC11L-4020F-N0020

Datasheet:

Bourns, Inc.-PEC11L-4020F-N0020-datasheets-680240.pdf

Description: ROTARY ENCODER MECHANICAL 20PPR

In Stock : 488

Need wholesale pricing? Send RFQ now for the best rates and immediate response.

QUICK RFQ

ADD TO RFQ LIST

Quantity

Unit Price

Ext. Price

1+
$1.94900
$1.95

10+
$1.61004
$16.1

100+
$1.52530
$152.53

1000+
$1.27108
$1271.08

ADD TO CART

QUICK ORDER

Unit Price： $1.94900 Subtotal： $1.95

Unit Weight

0.099916 oz

Product

Contacting Encoders

Encoder Type

Mechanical

PPAP

No

Built in Switch

No

Maximum Operating Speed

60r/min

Product Status

Active

RoHS

RoHS Compliant

Automotive

No

Tradename

Pro Audio

Product Length (mm)

13.2

Number of Channels

2

Technology

Rotary

Voltage - Supply

-

REACH Status

REACH Unaffected

Typical Operating Supply Voltage

5VDC

EU RoHS

Compliant

Shaft Style

Flat

Moisture Sensitivity Level (MSL)

Not Applicable

Encoder Signal

Digital Square Wave

Termination Style

PC Pin

Terminal Type

PC Pin

ECCN

EAR99

Rotational Life (Cycles Min)

100K

Orientation

Vertical

Mounting Type

Panel, PCB Through Hole

Size / Dimension

11 mm

Mounting

Through Hole

With Switch

Without Switch

Shock Rating

100G

Maximum Operating Torque (N.m)

0.015

Life

100000 Cycle

Pulses per Revolution

20

HTSUS

8543.70.4500

Package

Tray

USHTS

8543704500

Resolution

20 PPR

Programmability

No

HTS

8543.70.98.60

Output Type

Quadrature (Incremental)

ECCN (US)

EAR99

Minimum Operating Temperature (°C)

-25

Maximum Operating Temperature (°C)

85

Number of Detents

No Detent

Detent

No

Mfr

Bourns Inc.

Shaft Diameter (mm)

6

Mechanical Life (Cycles)

100000

RoHS Status

ROHS3 Compliant

Encoder Code

Quadrature

Mounting Style

PCB Mount

Motion

Rotary

Shaft Type

D / Flatted

Actuator Type

6mm Dia Flatted End

Encoder Reading

Incremental

Shaft Diameter

6 mm

Series

PEC11

Type

Low Profile Encoder

Body Orientation

Straight

Operating Supply Voltage

5 VDC

Product Height (mm)

24.5

Part Status

Active

Base Product Number

PEC11L
