Bourns, Inc.

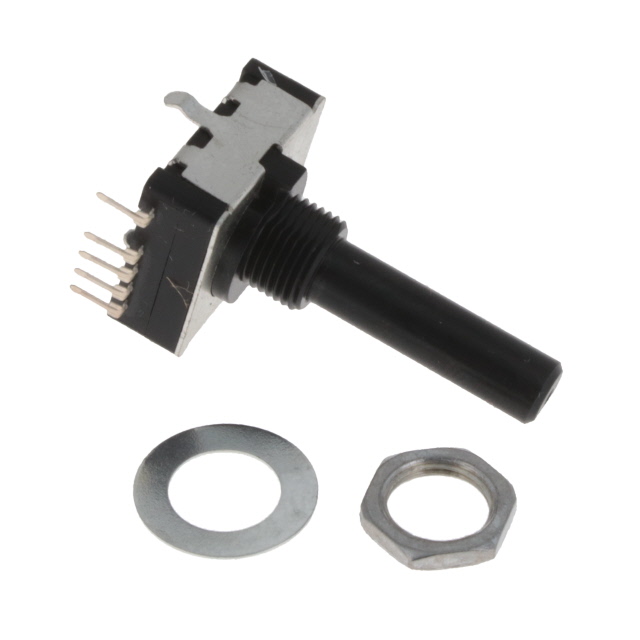

PAC18R1-43D28F
Sensors
PAC18R1-43D28F
54-PAC18R1-43D28F
ENCODER
In Stock : 1840
Need wholesale pricing? Send RFQ now for the best rates and immediate response.
QUICK RFQ
ADD TO RFQ LIST
- 1+
- $2.39820
- $2.4
- 10+
- $2.19567
- $21.96
- 100+
- $2.05844
- $205.84
- 1000+
- $1.92774
- $1927.74
ADD TO CART
QUICK ORDER
$2.39820
$2.40
Tech Specifications
Unit Weight
0.243743 oz
Product
Contacting Encoders
Encoder Type
Absolute
PPAP
No
Built in Switch
No
Maximum Operating Speed
60r/min
Product Status
Active
RoHS
RoHS Compliant
Automotive
No
Product Length (mm)
20.2
Number of Channels
1 Channel
Technology
Mechanical
Voltage - Supply
-
REACH Status
REACH Unaffected
Typical Operating Supply Voltage
10VDC
EU RoHS
Compliant
Shaft Style
Flat
Moisture Sensitivity Level (MSL)
1 (Unlimited)
Termination Style
PC Pin
Terminal Type
PC Pin
ECCN
EAR99
Rotational Life (Cycles Min)
30K
Orientation
Vertical
Mounting Type
PCB, Through Hole
Size / Dimension
20.2 mm x 20 mm x 41.8 mm
Mounting
Through Hole
With Switch
Without Switch
Bushing Size
9.5 mm x 5.84 mm
Maximum Operating Torque (N.m)
0.02
Life
30000 Cycle
Pulses per Revolution
-
HTSUS
8543.70.4500
Package
Tray
USHTS
8543704500
Programmability
No
HTS
8543.70.98.60
Output Type
Gray Code (Absolute)
ECCN (US)
EAR99
Minimum Operating Temperature (°C)
-35
Shaft Length
28.9 mm
Maximum Operating Temperature (°C)
70
Number of Detents
16 Detent
Detent
Yes
Mfr
Bourns Inc.
Shaft Diameter (mm)
6.34
Maximum Operating Temperature
+ 75 C
Mechanical Life (Cycles)
30000
RoHS Status
ROHS3 Compliant
Mounting Style
PCB Mount
Motion
Rotary
Bushing Material
Plastic
Shaft Type
D / Flatted
Actuator Type
1/4" Dia Flatted End
Encoder Reading
Absolute
Shaft Diameter
6.34 mm
Minimum Operating Temperature
- 30 C
Series
PAC18R
Type
Low Profile Encoder
Body Orientation
Straight
IP Rating
IP64
Operating Supply Voltage
10 VDC
Product Height (mm)
38.1
Part Status
Active
PAC18R1-43D28F Documents
Download datasheets and manufacturer documentation for PAC18R1-43D28F
