Texas Instruments

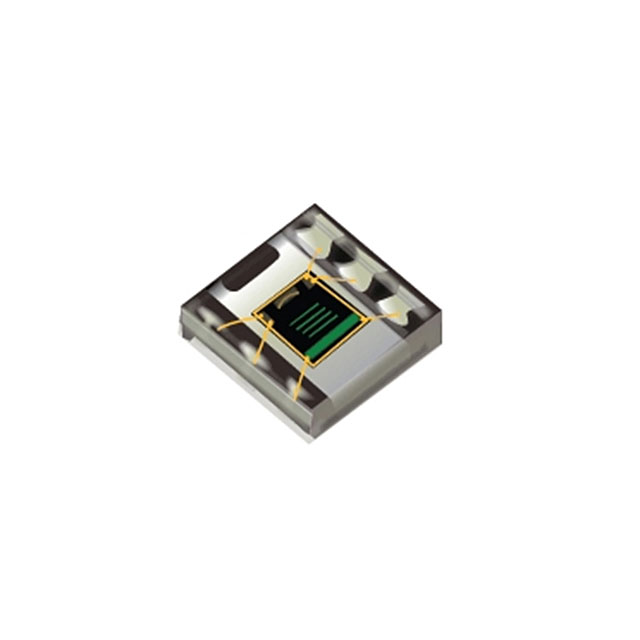

OPT3002DNPR
Sensors
OPT3002DNPR
54-OPT3002DNPR
SENSOR OPT 505NM AMBIENT 6USON
In Stock : 5139
Need wholesale pricing? Send RFQ now for the best rates and immediate response.
QUICK RFQ
ADD TO RFQ LIST
- 1+
- $0.50177
- $0.5
- 10+
- $0.40903
- $4.09
- 30+
- $0.36266
- $10.88
- 100+
- $0.31630
- $31.63
ADD TO CART
QUICK ORDER
$0.50177
$0.50
Tech Specifications
Unit Weight
0.005291 oz
PPAP
No
Maximum Rise Time
300 ns
Product Status
Active
RoHS
RoHS Compliant
Automotive
No
Supplier Package
USON EP
Package / Case
6-UDFN Exposed Pad
Sensor Type
Light to Digital
Voltage - Supply
1.6V ~ 3.6V
REACH Status
REACH Unaffected
Maximum Operating Supply Voltage (V)
3.6
EU RoHS
Compliant
Moisture Sensitivity Level (MSL)
3 (168 Hours)
Operating Temperature
-40°C ~ 85°C
Maximum Fall Time
300 ns
Maximum Fall Time (ns)
300
ECCN
EAR99
Mounting Type
Surface Mount
Standard Package Name
SON
Wavelength
505nm
Pin Count
6
Mounting
Surface Mount
Moisture Sensitive
Yes
Linearity
Yes
SVHC
Yes
Low Level Output Voltage (V)
0.32
Typical Operating Supply Voltage (V)
1.8|2.5|3.3
HTSUS
8541.49.1050
Package
Tape & Reel (TR)
USHTS
8542390060
PCB changed
6
HTS
8542.39.00.60
Output Type
I2C/SMBus
ECCN (US)
EAR99
Supply Voltage - Min
1.6 V
Supplier Device Package
6-USON (2x2)
Minimum Operating Temperature (°C)
-40
Maximum Operating Temperature (°C)
85
Package Height
0.6(Max)
Mfr
Texas Instruments
Maximum Operating Temperature
+ 85 C
Supply Voltage - Max
3.6 V
Interface Type
Serial (2-Wire, I2C, SMBus)
RoHS Status
ROHS3 Compliant
Mounting Style
SMD/SMT
Maximum Rise Time (ns)
300
Proximity Detection
No
Data Bus Width
23 bit
Package Length
2.1(Max)
Minimum Operating Temperature
- 40 C
Series
OPT3002
Type
Ambient
Operating Supply Voltage
3.6 V
Part Status
Active
Maximum Operating Frequency
2.6 MHz
Package Width
2.1(Max)
Base Product Number
OPT3002
Minimum Operating Supply Voltage (V)
1.6
OPT3002DNPR Documents
Download datasheets and manufacturer documentation for OPT3002DNPR
