Texas Instruments
OPT101P-J
Sensors

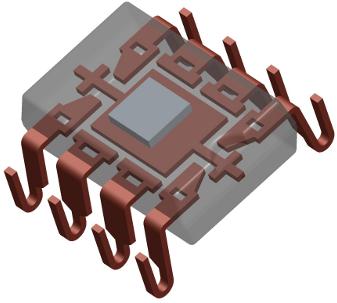

OPT101P-J
54-OPT101P-J
Monolithic Photodiode And Single-Supply Transimpedance Amplifier
In Stock : 242
Need wholesale pricing? Send RFQ now for the best rates and immediate response.
QUICK RFQ
ADD TO RFQ LIST
Tech Specifications
Unit Weight
0.013944 oz
PCB changed
8
HTS
8542.39.00.60
Responsivity
0.45 A/W
ECCN (US)
EAR99
Product
Light to Voltage Converters
PPAP
No
RoHS
RoHS Compliant
Automotive
No
Minimum Operating Temperature (°C)
0
Maximum Operating Temperature (°C)
70
Supplier Package
SOP
Operating Supply Current
120 uA
Package / Case
SOP-8
Package Height
3.43(Max)
Polarity
Forward
Maximum Operating Supply Voltage (V)
36
Height
3.24 mm
Maximum Operating Temperature
+ 70 C
EU RoHS
Compliant
Maximum Dark Current (nA)
0.0025(Typ)
Width
6.52 mm
Peak Wavelength
650 nm
Mounting Style
SMD/SMT
Maximum Frequency
14 kHz
Maximum Rise Time (ns)
28000(Typ)
Maximum Fall Time (ns)
28000(Typ)
ECCN
EAR99
Package Length
9.91(Max)
Standard Package Name
SO
Minimum Operating Temperature
0 C
Pin Count
8
Mounting
Surface Mount
Series
OPT101
Type
Chip
Moisture Sensitive
Yes
Length
9.52 mm
Operating Supply Voltage
18 V
Lead Shape
Gull-wing
Part Status
Active
Peak Wavelength (nm)
650
SVHC
Yes
Package
Tube
Package Width
6.99(Max)
USHTS
8542390060
Photo Sensitivity
0.45A/W
Minimum Operating Supply Voltage (V)
2.7
OPT101P-J Documents
Download datasheets and manufacturer documentation for OPT101P-J
