TT Electronics / Optek
OP509B
Sensors
OP509B
54-OP509B

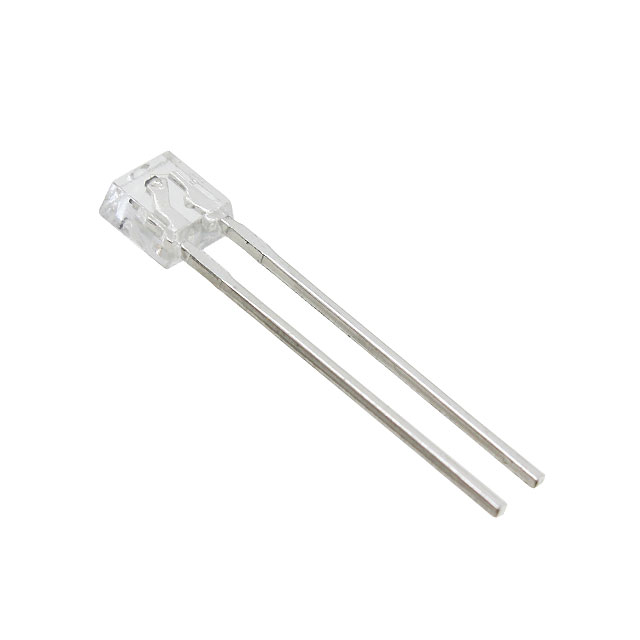

SENSOR PHOTO 890NM TOP VIEW RAD
In Stock : Please Submit RFQ TO US
Need wholesale pricing? Send RFQ now for the best rates and immediate response.
QUICK RFQ
ADD TO RFQ LIST
Tech Specifications
Maximum On-State Collector Current
10.6 mA
Viewing Angle
50°
Product
Phototransistors
Current - Dark (Id) (Max)
100 nA
Product Status
Active
Voltage - Collector Emitter Breakdown (Max)
30 V
RoHS
RoHS Compliant
Package / Case
Radial
REACH Status
REACH Unaffected
Collector-Emitter Saturation Voltage
400 mV
Mfr
TT Electronics/Optek Technology
Height
3.81 mm
Maximum Operating Temperature
+ 100 C
Width
1.63 mm
RoHS Status
ROHS3 Compliant
Peak Wavelength
890 nm
Moisture Sensitivity Level (MSL)
1 (Unlimited)
Mounting Style
Through Hole
Operating Temperature
-40°C ~ 100°C (TA)
Collector-Emitter Breakdown Voltage
30 V
Current - Collector (Ic) (Max)
10.6 mA
ECCN
EAR99
Orientation
Top View
Mounting Type
Through Hole
Wavelength
890nm
Minimum Operating Temperature
- 40 C
Series
-
Type
NPN Silicon Phototransistor
Length
4.19 mm
Power - Max
100 mW
Collector- Emitter Voltage VCEO Max
30 V
HTSUS
8541.49.7080
Package
Bulk
Pd - Power Dissipation
100 mW
USHTS
8541497080
Dark Current
100 nA
Base Product Number
OP509
