TDK Corporation

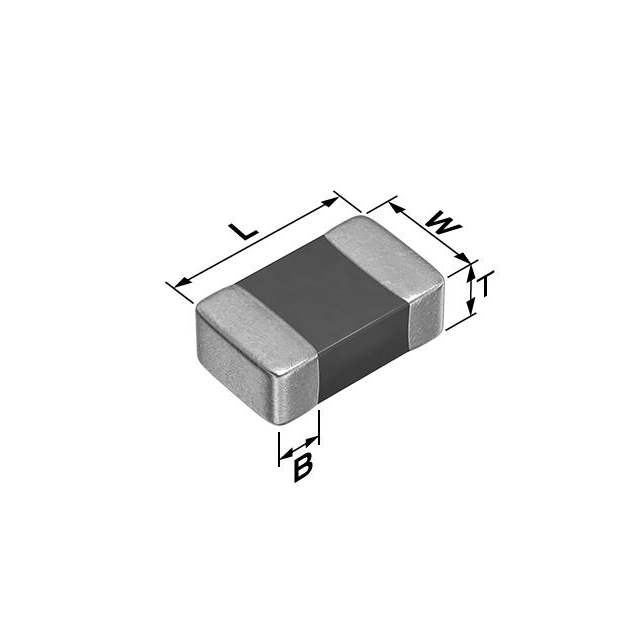

NTCG204CH104JTDS
Sensors
NTCG204CH104JTDS
54-NTCG204CH104JTDS
NTC,100K,5%,0805,AEC-Q200,125
In Stock : 2341
Need wholesale pricing? Send RFQ now for the best rates and immediate response.
QUICK RFQ
ADD TO RFQ LIST
- 1+
- $0.15656
- $0.16
- 10+
- $0.14188
- $1.42
- 100+
- $0.13944
- $13.94
- 1000+
- $0.13699
- $136.99
ADD TO CART
QUICK ORDER
$0.15656
$0.16
Tech Specifications
Power Rating
200 mW
Sensitivity Index Range (K)
4100 to 4300
PPAP
Unknown
Product Status
Active
RoHS
RoHS Compliant
Automotive
Yes
Product Length (mm)
2
Package / Case
0805 (2012 Metric)
REACH Status
REACH Unaffected
Product Weight (g)
0.0072
EU RoHS
Compliant
B25/50
4085K
Moisture Sensitivity Level (MSL)
1 (Unlimited)
Operating Temperature
-40°C ~ 125°C
Construction
Solder Pad
B0/50
-
B Tolerance
3 %
Termination Style
SMD/SMT
ECCN
EAR99
Percentage of Resistance Tolerance @ 25C (%)
±5
Grade
Automotive
B Value Tolerance
±3%
Mounting Type
Surface Mount
Mounting
Surface Mount
Resistance
100 kOhms
Qualification
AEC-Q200
Number of Terminals
2
Resistance Range @ 25C (Ohm)
25000 to 120000
Resistance in Ohms @ 25°C
100k
HTSUS
8533.40.8070
Package
Tape & Reel (TR)
USHTS
8533408070
Application
Temperature Compensation|Temperature Sensor
B25/85
4150K
B Parameter
4150 K
HTS
EA
ECCN (US)
EAR99
Resistance Tolerance
±5%
B25/100
4172K
Percentage of Resistance Tolerance Range @ 25C (%)
±5 to ±10
Minimum Operating Temperature (°C)
-40
Maximum Operating Temperature (°C)
125
B25/75
4134K
Accuracy
±3%
Mfr
TDK Corporation
Height
0.7 mm
Product Depth (mm)
1.25
Maximum Operating Temperature
+ 125 C
Width
1.25 mm
Diameter
-
RoHS Status
ROHS3 Compliant
Resistance @ 25C (Ohm)
100000
Mounting Style
PCB Mount
Tolerance
5 %
Current Rating
100 uA
Maximum Power Rating (W)
0.2
Minimum Operating Temperature
- 40 C
Series
NTCG
Length - Lead Wire
-
Type
NTC
Length
2 mm
Power - Max
200 mW
Product Height (mm)
0.7
Part Status
Active
Beta Value
B25/100
Sensitivity Index (K)
4150
NTCG204CH104JTDS Documents
Download datasheets and manufacturer documentation for NTCG204CH104JTDS
