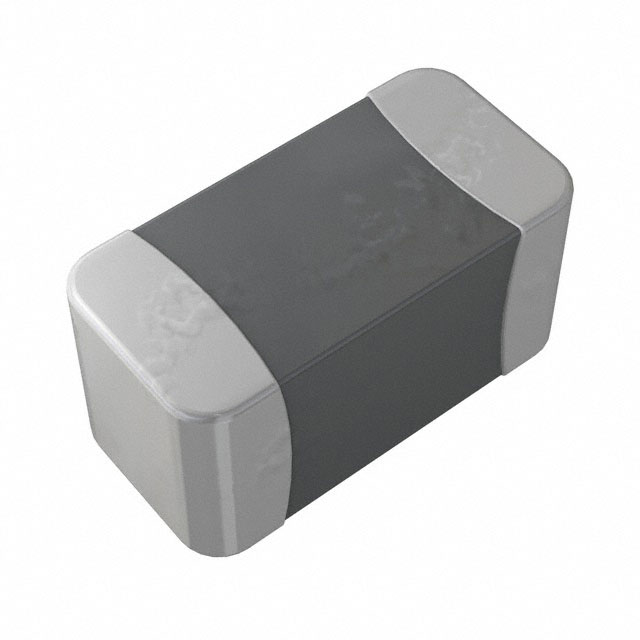

TDK Corporation_NTCG104LH223JTDS
TDK Corporation_NTCG104LH223JTDS
TDK Corporation

NTCG104LH223JTDS

Sensors
TDK Corporation
NTCG104LH223JTDS
54-NTCG104LH223JTDS
TDK Corporation-NTCG104LH223JTDS-datasheet-695977.pdf
TDK Corporation-NTCG104LH223JTDS-datasheets-695977.pdf
THERMISTOR NTC 22KOHM 4485K 0402
In Stock : 3357

Need wholesale pricing? Send RFQ now for the best rates and immediate response.

QUICK RFQ
ADD TO RFQ LIST
ampheo flow
  • Quantity
  • Unit Price
  • Ext. Price
    • 1+
    • $0.04285
    • $0.04
    • 10+
    • $0.03883
    • $0.39
    • 100+
    • $0.03816
    • $3.82
    • 1000+
    • $0.03749
    • $37.49
    ADD TO CART
    QUICK ORDER
    $0.04285    $0.04
    Description Tech Specifications Documents Shopping Guide

    Tech Specifications

    Power Rating
    100 mW
    Sensitivity Index Range (K)
    >= 4550
    PPAP
    Unknown
    Product Status
    Active
    RoHS
    RoHS Compliant
    Automotive
    Yes
    Product Length (mm)
    1
    Package / Case
    0402 (1005 Metric)
    REACH Status
    REACH Unaffected
    EU RoHS
    Compliant
    B25/50
    4485K
    Moisture Sensitivity Level (MSL)
    1 (Unlimited)
    Operating Temperature
    -40°C ~ 125°C
    Construction
    Solder Pad
    B0/50
    -
    B Tolerance
    3 %
    Termination Style
    SMD/SMT
    ECCN
    EAR99
    Percentage of Resistance Tolerance @ 25C (%)
    ±5
    Grade
    Automotive
    B Value Tolerance
    ±3%
    Mounting Type
    Surface Mount
    Mounting
    Surface Mount
    Resistance
    22 kOhms
    Qualification
    AEC-Q200
    Number of Terminals
    2
    Resistance Range @ 25C (Ohm)
    6000 to 25000
    Resistance in Ohms @ 25°C
    22k
    HTSUS
    8533.40.8070
    Package
    Tape & Reel (TR)
    USHTS
    8533408070
    Application
    Temperature Compensation|Temperature Sensor
    B25/85
    4550K
    B Parameter
    4550 K
    HTS
    8533.40.80.70
    ECCN (US)
    EAR99
    Resistance Tolerance
    ±5%
    B25/100
    -
    Percentage of Resistance Tolerance Range @ 25C (%)
    ±5 to ±10
    Minimum Operating Temperature (°C)
    -40
    Maximum Operating Temperature (°C)
    125
    B25/75
    -
    Accuracy
    ±3%
    Mfr
    TDK Corporation
    Height
    0.5 mm
    Product Depth (mm)
    0.5
    Maximum Operating Temperature
    + 125 C
    Width
    0.5 mm
    Diameter
    -
    RoHS Status
    ROHS3 Compliant
    Resistance @ 25C (Ohm)
    22000
    Mounting Style
    PCB Mount
    Tolerance
    5 %
    Minimum Operating Temperature
    - 40 C
    Series
    NTCG
    Length - Lead Wire
    -
    Type
    NTC
    Length
    1 mm
    Product Height (mm)
    0.5
    Part Status
    Active
    Beta Value
    B25/85
    Sensitivity Index (K)
    4550
