Murata Manufacturing

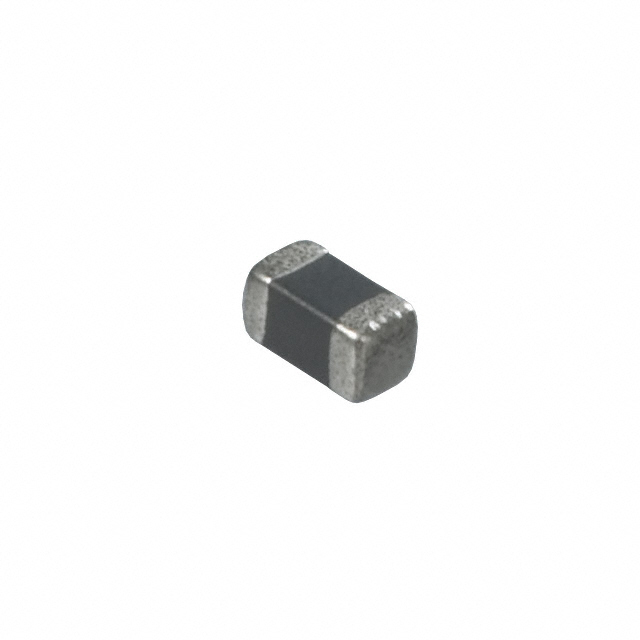

NCP18XW222J03RB
Sensors
NCP18XW222J03RB
54-NCP18XW222J03RB
THERM NTC 2.2KOHM 3950K 0603
In Stock : 12605
Need wholesale pricing? Send RFQ now for the best rates and immediate response.
QUICK RFQ
ADD TO RFQ LIST
- 5+
- $0.10810
- $0.54
- 50+
- $0.08823
- $4.41
- 150+
- $0.07830
- $11.74
- 500+
- $0.07084
- $35.42
ADD TO CART
QUICK ORDER
$0.00000
$0.00
Tech Specifications
Power Rating
100 mW
Unit Weight
0.000166 oz
Sensitivity Index Range (K)
3850 to 4100
PPAP
No
Product Status
Active
RoHS
RoHS Compliant
Automotive
No
Product Length (mm)
1.6
Package / Case
0603 (1608 Metric)
REACH Status
REACH Unaffected
Product Weight (g)
0.0047
EU RoHS
Compliant
B25/50
3950K
Moisture Sensitivity Level (MSL)
1 (Unlimited)
Operating Temperature
-40°C ~ 125°C
Construction
Solder Pad
B0/50
-
B Tolerance
3 %
Termination Style
SMD/SMT
ECCN
EAR99
Percentage of Resistance Tolerance @ 25C (%)
±5
B Value Tolerance
±3%
Mounting
Surface Mount
Resistance
2.2 kOhms
Number of Terminals
2
Resistance Range @ 25C (Ohm)
1500 to 6000
Resistance in Ohms @ 25°C
2.2k
HTSUS
8533.40.8070
Package
Tape & Reel (TR)
USHTS
8533408070
Application
Temperature Compensation|Temperature Sensor
B25/85
3987K
B Parameter
3950 K
Length Tolerance (mm)
±0.15
HTS
8533.40.80.70
ECCN (US)
EAR99
Resistance Tolerance
±5%
B25/100
3998K
Percentage of Resistance Tolerance Range @ 25C (%)
±5 to ±10
Minimum Operating Temperature (°C)
-40
Maximum Operating Temperature (°C)
125
B25/75
-
Voltage
5 V
Mfr
Murata Electronics
Height
0.8 mm
Product Depth (mm)
0.8
Maximum Operating Temperature
+ 125 C
Width
0.8 mm
RoHS Status
ROHS3 Compliant
Depth Tolerance (mm)
±0.15
Resistance @ 25C (Ohm)
2200
Mounting Style
PCB Mount
Tolerance
5 %
Current Rating
213 uA
Maximum Power Rating (W)
100m
Minimum Operating Temperature
- 40 C
Series
NCP18
Length - Lead Wire
-
Type
NTC
Height Tolerance (mm)
±0.15
Length
1.6 mm
Power - Max
100 mW
Product Height (mm)
0.8
Part Status
Active
Beta Value
B25/50
Base Product Number
NCP18XW
Sensitivity Index (K)
3987
