AVX (KYOCERA AVX)

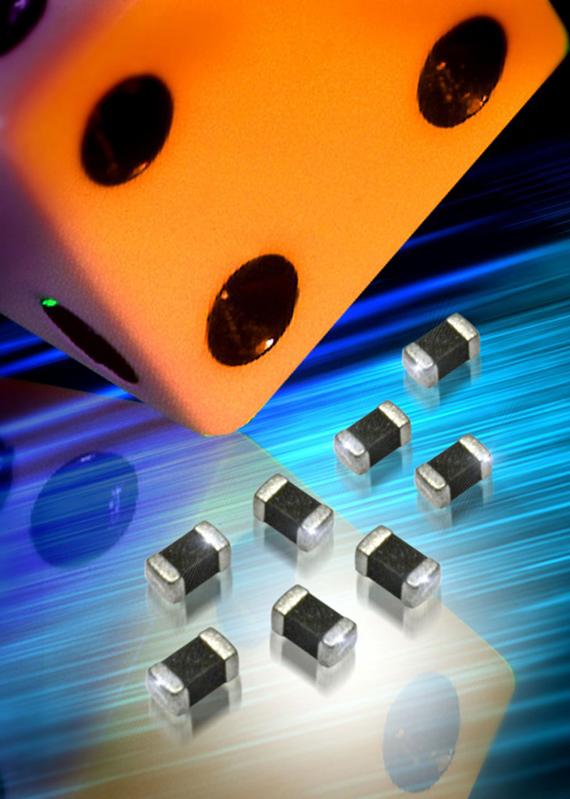

NB20R00684JBA
Sensors
NB20R00684JBA
54-NB20R00684JBA
Thermistor NTC 680K Ohm 5% 2-Pin 1206 Surface Mount Solder Pad 4400K -5 to -4.5 T/R Automotive AEC-Q200
In Stock : Please Submit RFQ TO US
Need wholesale pricing? Send RFQ now for the best rates and immediate response.
QUICK RFQ
ADD TO RFQ LIST
Tech Specifications
HTS
8533.40.80.70
Sensitivity Index Range (K)
4300 to 4550
ECCN (US)
EAR99
PPAP
Unknown
Percentage of Resistance Tolerance Range @ 25C (%)
±5 to ±10
Automotive
Yes
Minimum Operating Temperature (°C)
-55
Maximum Operating Temperature (°C)
150
Accuracy
±3%
Product Length (mm)
3.2
Product Depth (mm)
1.6
EU RoHS
Compliant
Resistance @ 25C (Ohm)
680000
Thermal Coefficient
-4.8%/°C
Construction
Solder Pad
Thermal Time Constant (s)
7
Thermal Coefficient Range
-5 to -4.5
Thermal Time Constant Range (s)
5 to 15
Percentage of Resistance Tolerance @ 25C (%)
±5
Mounting
Surface Mount
Type
NTC
Number of Terminals
2
Resistance Range @ 25C (Ohm)
>= 120000
Product Height (mm)
1.5
Part Status
Active
Package
Tape and Reel
Application
Protection of Power Transistor|Temperature Control
Sensitivity Index (K)
4400
