Melexis_MLX91220KDF-ABF-050-SP
Melexis_MLX91220KDF-ABF-050-SP
Melexis

MLX91220KDF-ABF-050-SP

Sensors
Melexis
MLX91220KDF-ABF-050-SP
54-MLX91220KDF-ABF-050-SP
Melexis-MLX91220KDF-ABF-050-SP-datasheet-767628.pdf
Melexis-MLX91220KDF-ABF-050-SP-datasheets-767628.pdf

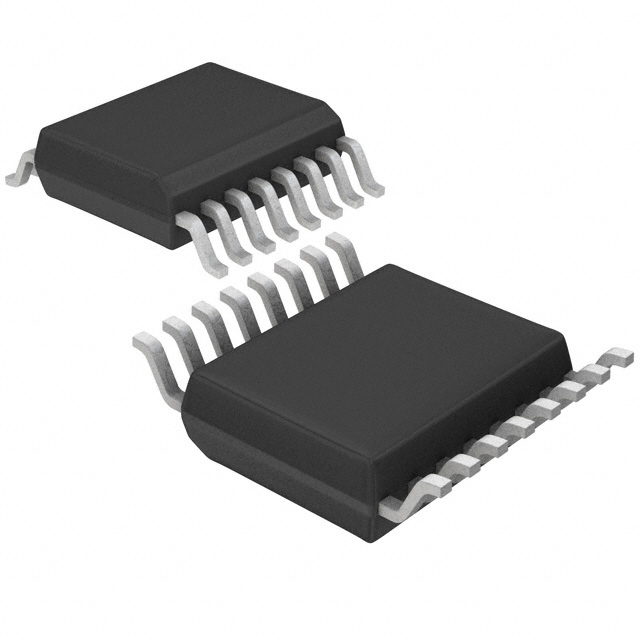

IC CURRENT SENSOR P&P 16SOIC
In Stock : 81

Need wholesale pricing? Send RFQ now for the best rates and immediate response.

QUICK RFQ
ADD TO RFQ LIST
ampheo flow
  • Quantity
  • Unit Price
  • Ext. Price
    • 1+
    • $5.99000
    • $5.99
    • 10+
    • $3.99179
    • $39.92
    • 100+
    • $3.69231
    • $369.23
    • 1000+
    • $2.89399
    • $2893.99
    ADD TO CART
    QUICK ORDER
    $5.99000    $5.99
    Description Tech Specifications Documents Shopping Guide

    Tech Specifications

    Polarization
    Bidirectional
    Product Status
    Active
    RoHS
    RoHS Compliant
    Current - Sensing
    50A
    Supplier Package
    SOIC W
    Package / Case
    16-SOIC (0.295", 7.50mm Width)
    Number of Channels
    1
    Sensor Type
    Hall Effect, Open Loop
    Voltage - Supply
    4.5V ~ 5.5V
    REACH Status
    REACH Unaffected
    EU RoHS
    Compliant
    Moisture Sensitivity Level (MSL)
    3 (168 Hours)
    Operating Temperature
    -40°C ~ 125°C
    For Measuring
    AC/DC
    ECCN
    EAR99
    Mounting Type
    Surface Mount
    Pin Count
    16
    Mounting
    Surface Mount
    Qualification
    AEC-Q100
    Moisture Sensitive
    Yes
    Linearity
    ±0.6%
    HTSUS
    8542.39.0001
    Package
    Bulk
    USHTS
    8542310075
    Output Voltage
    10 V
    Frequency Range
    DC to 300 kHz
    PCB changed
    16
    HTS
    EA
    Output Type
    Analog
    Response Time
    2µs
    ECCN (US)
    EAR99
    Current - Supply (Max)
    21mA
    Supplier Device Package
    16-SOIC
    Accuracy
    -
    Output
    Fixed, Voltage
    Package Height
    2.44(Max)
    Mfr
    Melexis Technologies NV
    Height
    2.64 mm
    Maximum Operating Temperature
    + 125 C
    Width
    7.6 mm
    RoHS Status
    ROHS3 Compliant
    Current Rating
    20 mA
    Package Length
    10.46(Max)
    Minimum Operating Temperature
    - 40 C
    Series
    MLX91220
    Type
    Integrated Current Sensor
    Sensitivity
    40mV/A
    Length
    10.46 mm
    Operating Supply Voltage
    5 V
    Frequency
    DC ~ 300kHz
    Package Width
    7.6(Max)
    Base Product Number
    MLX91220

    MLX91220KDF-ABF-050-SP Documents
