Melexis

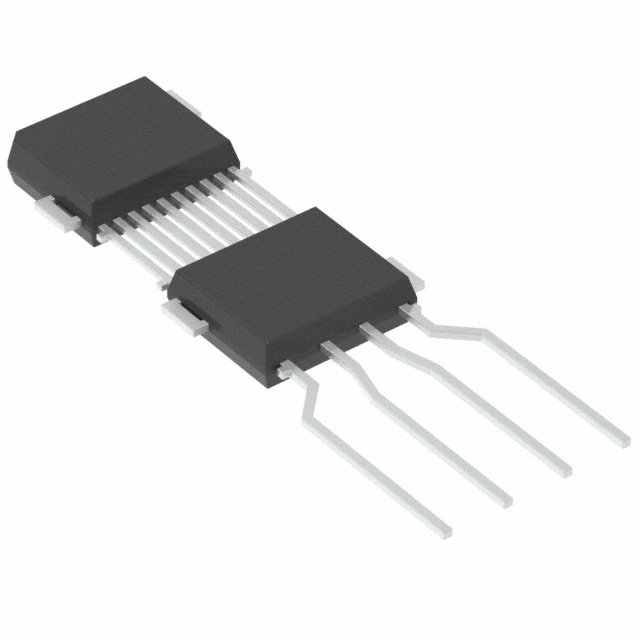

MLX90366LVS-AEU-463-RE
Sensors
MLX90366LVS-AEU-463-RE
54-MLX90366LVS-AEU-463-RE
SENS RTRY/LNR ANLG/PWM SENT 4DMP
In Stock : Please Submit RFQ TO US
Need wholesale pricing? Send RFQ now for the best rates and immediate response.
QUICK RFQ
ADD TO RFQ LIST
Tech Specifications
Product
Position Sensors
PPAP
Unknown
Product Status
Active
RoHS
RoHS Compliant
Automotive
Yes
Tradename
Triaxis
Supplier Package
DMP
Package / Case
4-SIP Module, Formed Leads
Technology
Hall Effect
Voltage - Supply
4.5V ~ 5.5V
REACH Status
REACH Unaffected
EU RoHS
Compliant
Moisture Sensitivity Level (MSL)
Not Applicable
Operating Temperature
-40°C ~ 150°C
Operating Angle
360 deg
Termination Style
PC Pin
Output Current
18 mA
For Measuring
Linear, Rotary Position
ECCN
3A001.a.2
Mounting Type
Through Hole
Pin Count
3
Mounting
Through Hole
Qualification
AEC-Q100
Output Signal
Programmable
Linearity
±1°
Package
Tape & Reel (TR)
USHTS
8542390060
Resolution
12 bit
Linear Range
-
PCB changed
3
HTS
EA
Output Type
SENT
ECCN (US)
EAR99
Resistance Tolerance
-
Supply Voltage - Min
4.5 V
Supplier Device Package
4-DMP
Rotation Angle - Electrical, Mechanical
0° ~ 360°, Continuous
Operating Supply Current
6 mA
Measures
Position
Output
SENT
Package Height
12.35
Mfr
Melexis Technologies NV
Maximum Operating Temperature
+ 150 C
Supply Voltage - Max
5.5 V
RoHS Status
ROHS3 Compliant
Mounting Style
Through Hole
Actuator Type
External Magnet, Not Included
Package Length
5.2
Minimum Operating Temperature
- 40 C
Series
Triaxis®
Package Width
1.5
