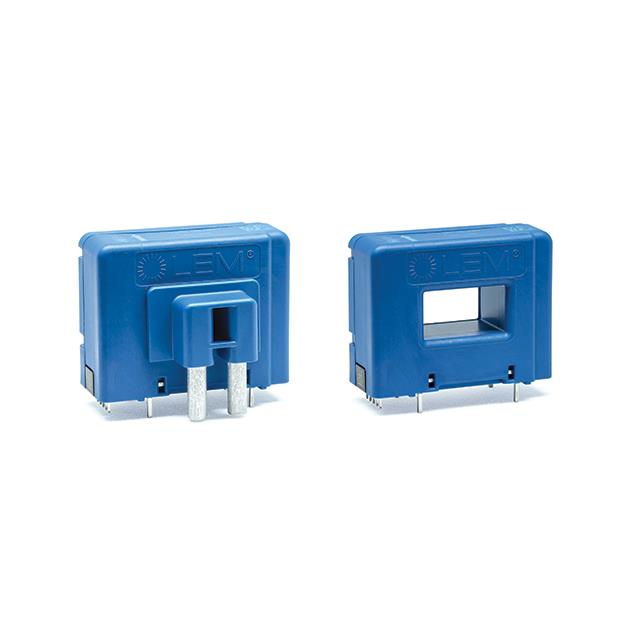

LEM USA, Inc._LZSR 80-P
LEM USA, Inc._LZSR 80-P
LEM USA, Inc.

LZSR 80-P

Sensors
LEM USA, Inc.
LZSR 80-P
54-LZSR 80-P
LEM USA, Inc.-LZSR 80-P-datasheet-766652.pdf
LEM USA, Inc.-LZSR 80-P-datasheets-766652.pdf
CLOSED-LOOP CURRENT SENSOR 80A
In Stock : 58

Need wholesale pricing? Send RFQ now for the best rates and immediate response.

QUICK RFQ
ADD TO RFQ LIST
ampheo flow
  • Quantity
  • Unit Price
  • Ext. Price
    • 1+
    • $41.15000
    • $41.15
    • 10+
    • $30.37067
    • $303.71
    • 100+
    • $29.39100
    • $2939.1
    ADD TO CART
    QUICK ORDER
    $41.15000    $41.15
    Description Tech Specifications Documents Shopping Guide

    Tech Specifications

    Unit Weight
    1.552054 oz
    Polarization
    Bidirectional
    Frequency Range
    200 kHz
    Output Type
    Digital, Analog
    Response Time
    3 us
    Current - Supply (Max)
    -
    Product Status
    Active
    RoHS
    RoHS Compliant
    Supply Voltage - Min
    4.75 V
    Supplier Device Package
    -
    Current - Sensing
    80A
    Accuracy
    1.4 %
    Package / Case
    Module
    Number of Channels
    1
    Sensor Type
    Closed Loop
    Voltage - Supply
    4.75V ~ 5.25V
    Output
    Voltage
    REACH Status
    REACH Unaffected
    Mfr
    LEM USA Inc.
    Height
    37.75 mm
    Maximum Operating Temperature
    + 85 C
    Supply Voltage - Max
    5.25 V
    Width
    19.4 mm
    RoHS Status
    ROHS3 Compliant
    Moisture Sensitivity Level (MSL)
    1 (Unlimited)
    Operating Temperature
    -40°C ~ 85°C
    For Measuring
    AC/DC
    Current Rating
    80 A
    ECCN
    EAR99
    Mounting Type
    Through Hole
    Minimum Operating Temperature
    - 40 C
    Series
    LZSR-P
    Type
    Current Transducer
    Sensitivity
    7.813mV/A
    Length
    48.4 mm
    Operating Supply Voltage
    5 V
    Linearity
    ±0.1%
    Frequency
    DC ~ 200kHz
    HTSUS
    9030.33.3800
    Package
    Bulk
    USHTS
    9030333800
    Output Voltage
    250 mV to 4.75 V

    LZSR 80-P Documents

    Download datasheets and manufacturer documentation for LZSR 80-P
