NXP Semiconductors
KMZ49,118
Sensors
KMZ49,118
54-KMZ49,118

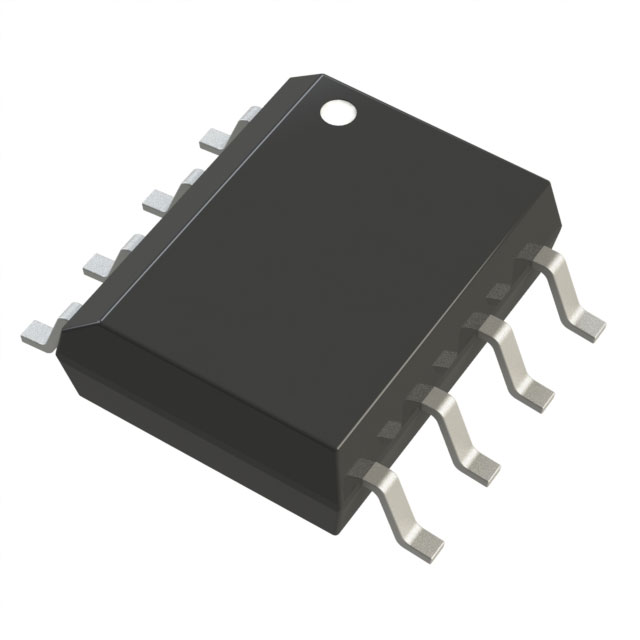

SENSOR ANGLE 45DEG SMD
In Stock : 234
Need wholesale pricing? Send RFQ now for the best rates and immediate response.
QUICK RFQ
ADD TO RFQ LIST
- 1+
- $1.68840
- $1.69
- 10+
- $1.60390
- $16.04
- 100+
- $1.35066
- $135.07
- 1000+
- $1.26624
- $1266.24
ADD TO CART
QUICK ORDER
$1.68840
$1.69
Tech Specifications
Unit Weight
0.003584 oz
Release Point Min/Max (Brp)
-
Module/IC Classification
IC
PPAP
Yes
Product Status
Obsolete
RoHS
RoHS Compliant
Automotive
Yes
Supplier Package
SO
Number of Bridge per Chip
2
Package / Case
8-SOIC (0.154", 3.90mm Width)
Technology
Magnetoresistive
Voltage - Supply
5V
REACH Status
REACH Unaffected
Maximum Operating Supply Voltage (V)
9
EU RoHS
Compliant
Moisture Sensitivity Level (MSL)
1 (Unlimited)
Operating Temperature
-40°C ~ 150°C
Termination Style
Gull Wing
For Measuring
Angle
ECCN
EAR99
Maximum Magnetic Field
25KA/m(Min)
Supplier Temperature Grade
Extended
Mounting Type
Surface Mount
Standard Package Name
SO
Pin Count
8
Mounting
Surface Mount
Resistance
3.7 kOhms
Operating Point Min/Max
-
Output Signal
-
Linearity
-
Typical Operating Supply Voltage (V)
5
HTSUS
8542.39.0001
Package
Tape & Reel (TR)
USHTS
8542390060
Linear Range
-
PCB changed
8
HTS
KMZ49,118
ECCN (US)
EAR99
Resistance Tolerance
-
Maximum Output Current
-
Supply Voltage - Min
5 V
Supplier Device Package
8-SO
Minimum Operating Temperature (°C)
-40
Maximum Operating Temperature (°C)
150
Rotation Angle - Electrical, Mechanical
0° ~ 45°
Operating Supply Current
-
Output
Wheatstone Bridge
Package Height
1.45(Max)
Mfr
NXP USA Inc.
Maximum Operating Temperature
+ 150 C
Supply Voltage - Max
9 V
RoHS Status
ROHS3 Compliant
Mounting Style
SMD/SMT
Actuator Type
External Magnet, Not Included
Package Length
5(Max)
Minimum Operating Temperature
- 40 C
Series
KMZ49
Type
Angular
Operating Supply Voltage
5 V
Part Status
Obsolete
Maximum Bridge Resistance (kohm)
3.7
Package Width
4(Max)
Base Product Number
KMZ49
