NXP Semiconductors
KMA215,118
Sensors
KMA215,118
54-KMA215,118

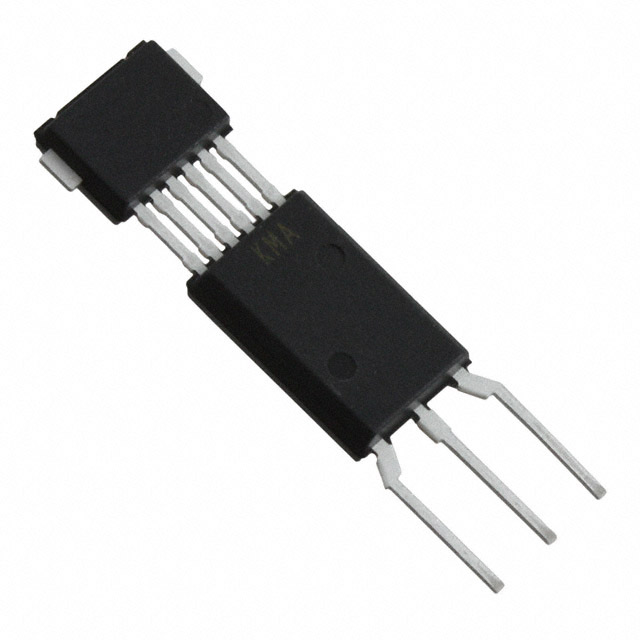

SENSOR ANGLE 180 DEG PC PIN
In Stock : Please Submit RFQ TO US
Need wholesale pricing? Send RFQ now for the best rates and immediate response.
QUICK RFQ
ADD TO RFQ LIST
Tech Specifications
Module/IC Classification
IC
PPAP
Yes
Product Status
Obsolete
Automotive
Yes
Supplier Package
SIP
Number of Bridge per Chip
2
Package / Case
3-SIP Module
Technology
Magnetoresistive
Voltage - Supply
4.5V ~ 5.25V
REACH Status
REACH Unaffected
Maximum Operating Supply Voltage (V)
5.25
EU RoHS
Compliant
Moisture Sensitivity Level (MSL)
1 (Unlimited)
Operating Temperature
-40°C ~ 160°C
Termination Style
PC Pin
For Measuring
Angle
ECCN
EAR99
Grade
Automotive
Maximum Magnetic Field
35KA/m(Min)
Mounting Type
Through Hole
Standard Package Name
SIP
Pin Count
3
Mounting
Through Hole
Qualification
AEC-Q100
Output Signal
-
Linearity
±1.2%
Lead Shape
Through Hole
SVHC
Yes
Typical Operating Supply Voltage (V)
5
HTSUS
8541.49.9500
Package
Tape & Reel (TR)
Linear Range
-
PCB changed
3
HTS
8542.39.00.01
ECCN (US)
EAR99
Resistance Tolerance
-
Supplier Device Package
3-SIP
Minimum Operating Temperature (°C)
-40
Maximum Operating Temperature (°C)
160
Rotation Angle - Electrical, Mechanical
0° ~ 180°, 0° ~ 180°
Output
Wheatstone Bridge
Mfr
NXP USA Inc.
RoHS Status
ROHS3 Compliant
Actuator Type
External Magnet, Included
Package Length
6.42(Max)
Series
-
Type
Angular
Part Status
Obsolete
Package Width
1.75(Max)
Base Product Number
