Broadcom

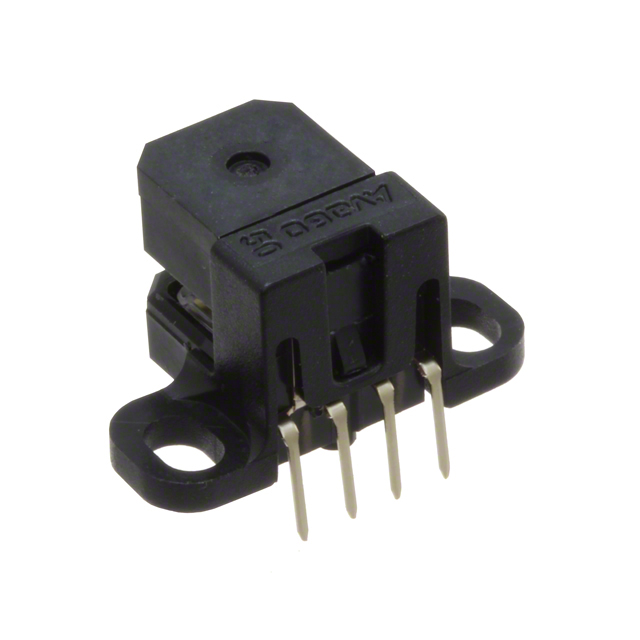

HEDS-9730#A54
Sensors
HEDS-9730#A54
54-HEDS-9730#A54
ROTARY ENCODER OPTICAL 500PPR
In Stock : Please Submit RFQ TO US
Need wholesale pricing? Send RFQ now for the best rates and immediate response.
QUICK RFQ
ADD TO RFQ LIST
Tech Specifications
Bushing Thread
Unthreaded
Output Type
Quadrature (Incremental)
Product
Optical Encoders
Encoder Type
Optical
Built in Switch
No
Product Status
Active
RoHS
RoHS Compliant
Number of Detents
No Detent
Number of Channels
2 Channel
Technology
Rotary
Voltage - Supply
2.8V ~ 5.2V
Detent
No
REACH Status
REACH Unaffected
Mfr
Broadcom Limited
Maximum Operating Temperature
+ 85 C
RoHS Status
ROHS3 Compliant
Moisture Sensitivity Level (MSL)
1 (Unlimited)
Mounting Style
PCB Mount
Bushing Material
No Bushing
Termination Style
Terminal Pins
Shaft Type
No Shaft
Actuator Type
Codewheel Not Included
ECCN
EAR99
Rotational Life (Cycles Min)
-
Orientation
Vertical
Mounting Type
Chassis Mount
Minimum Operating Temperature
- 40 C
Series
HEDS
Type
Incremental
With Switch
Without Switch
Bushing Size
-
Operating Supply Voltage
5 VDC
Pulses per Revolution
500
HTSUS
8543.70.4500
Package
Bulk
Accessory Type
-
USHTS
8543704500
Resolution
500 PPR
Base Product Number
HEDS-9730
HEDS-9730#A54 Documents
Download datasheets and manufacturer documentation for HEDS-9730#A54
