Broadcom

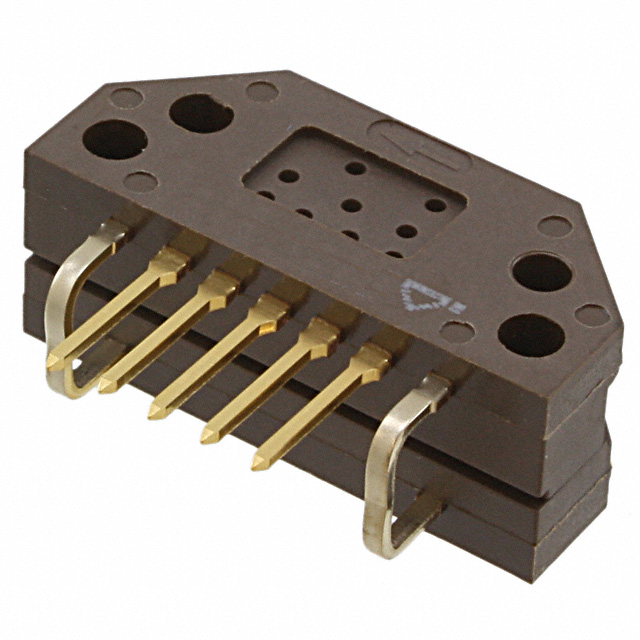

HEDS-9140-B00
Sensors
HEDS-9140-B00
54-HEDS-9140-B00
ROTARY ENCODER OPTICAL 1000PPR
In Stock : Please Submit RFQ TO US
Need wholesale pricing? Send RFQ now for the best rates and immediate response.
QUICK RFQ
ADD TO RFQ LIST
Tech Specifications
Unit Weight
0.144623 oz
Output Type
Quadrature with Index (Incremental)
Product
Optical Encoders
Encoder Type
Optical
Built in Switch
No
Product Status
Active
RoHS
RoHS Compliant
Voltage - Supply
5V
Detent
No
REACH Status
REACH Unaffected
Mfr
Broadcom Limited
RoHS Status
ROHS3 Compliant
Moisture Sensitivity Level (MSL)
1 (Unlimited)
Termination Style
Terminal Pins
Actuator Type
Codewheel Not Included
ECCN
EAR99
Rotational Life (Cycles Min)
-
Orientation
Vertical
Mounting Type
Chassis Mount
Series
HEDS
Type
Incremental
Pulses per Revolution
1000
HTSUS
8543.70.4500
Package
Bulk
USHTS
8543704500
Base Product Number
HEDS-9140
