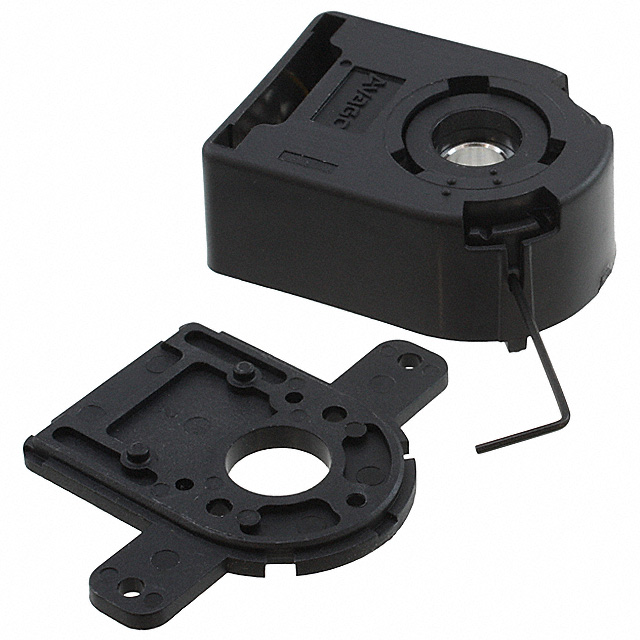

ROTARY ENCODER OPTICAL 400PPR
In Stock : 105

Need wholesale pricing? Send RFQ now for the best rates and immediate response.

QUICK RFQ
ADD TO RFQ LIST
ampheo flow
  • Quantity
  • Unit Price
  • Ext. Price
    • 1+
    • $55.79000
    • $55.79
    • 10+
    • $41.46520
    • $414.65
    • 100+
    • $39.20360
    • $3920.36
    ADD TO CART
    QUICK ORDER
    $55.79000    $55.79
    Description Tech Specifications Documents Shopping Guide

    Tech Specifications

    Unit Weight
    0.675496 oz
    Output Type
    Quadrature with Index (Incremental)
    Product
    Kits
    Encoder Type
    Optical
    Built in Switch
    No
    Product Status
    Active
    RoHS
    RoHS Compliant
    Number of Channels
    3 Channel
    Voltage - Supply
    5V
    Detent
    No
    REACH Status
    REACH Unaffected
    Mfr
    Broadcom Limited
    Maximum Operating Temperature
    + 100 C
    RoHS Status
    ROHS3 Compliant
    Moisture Sensitivity Level (MSL)
    1 (Unlimited)
    Mounting Style
    Chassis Mount
    Termination Style
    Terminal Pins
    Actuator Type
    1/4" Open Center
    ECCN
    EAR99
    Shaft Diameter
    1/4 in
    Rotational Life (Cycles Min)
    -
    Orientation
    Vertical
    Mounting Type
    Chassis Mount, Motors
    Minimum Operating Temperature
    - 40 C
    Series
    HEDS
    Type
    Incremental
    Operating Supply Voltage
    5 VDC
    Pulses per Revolution
    400
    HTSUS
    8543.70.4500
    Package
    Bulk
    USHTS
    8543704500
    Resolution
    400 PPR
    Base Product Number
    HEDS-5645
