HEDS-5500#F04
Sensors
HEDS-5500#F04
54-HEDS-5500#F04

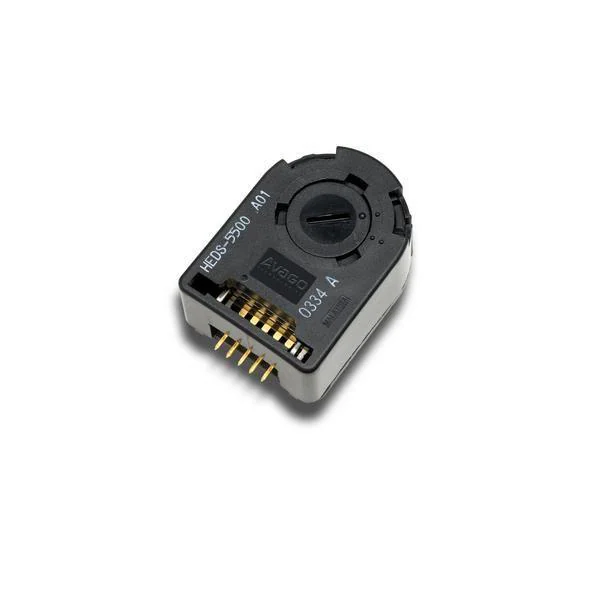

ROTARY ENCODER OPTICAL 256PPR
In Stock : Please Submit RFQ TO US
Need wholesale pricing? Send RFQ now for the best rates and immediate response.
QUICK RFQ
ADD TO RFQ LIST
Tech Specifications
Unit Weight
0.675496 oz
Output Type
Quadrature (Incremental)
Product
Kits
Encoder Type
Optical
Built in Switch
No
Product Status
Active
RoHS
RoHS Compliant
Number of Channels
2 Channel
Voltage - Supply
5V
Detent
No
REACH Status
REACH Unaffected
Mfr
Broadcom Limited
Maximum Operating Temperature
+ 100 C
RoHS Status
ROHS3 Compliant
Moisture Sensitivity Level (MSL)
1 (Unlimited)
Mounting Style
PCB Mount
Termination Style
Terminal Pins
Actuator Type
5/32" Open Center
ECCN
EAR99
Rotational Life (Cycles Min)
-
Orientation
Vertical
Mounting Type
Chassis Mount, Motors
Minimum Operating Temperature
- 40 C
Series
HEDS
Type
Incremental
Operating Supply Voltage
5 VDC
Pulses per Revolution
256
HTSUS
8543.70.4500
Package
Bulk
USHTS
8543704500
Resolution
256 PPR
Base Product Number
HEDS-5500
HEDS-5500#F04 Documents
Download datasheets and manufacturer documentation for HEDS-5500#F04
