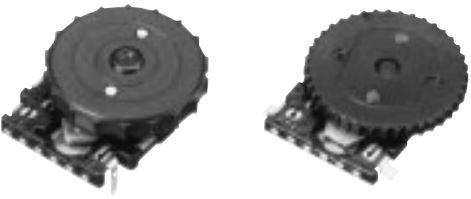

Panasonic
EVQ-WK5001
Sensors
EVQ-WK5001
54-EVQ-WK5001
ROTARY ENCODER MECHANICAL 15PPR
In Stock : Please Submit RFQ TO US
Need wholesale pricing? Send RFQ now for the best rates and immediate response.
QUICK RFQ
ADD TO RFQ LIST
Tech Specifications
HTS
8536.50.90.65
Output Type
Quadrature (Incremental)
ECCN (US)
EAR99
Encoder Type
Mechanical
PPAP
Unknown
Built in Switch
Yes
Product Status
Obsolete
Automotive
Unknown
Number of Channels
2
Voltage - Supply
-
Detent
Yes
Mfr
Panasonic Electronic Components
EU RoHS
Compliant
Mechanical Life (Cycles)
100000
Encoder Code
Quadrature
Moisture Sensitivity Level (MSL)
1 (Unlimited)
Motion
Rotary
Encoder Signal
Digital Square Wave
Termination Style
SMD (SMT) Tab
Actuator Type
Thumbwheel
Encoder Reading
Incremental
ECCN
EAR99
Rotational Life (Cycles Min)
100K
Orientation
Vertical
Mounting Type
PCB, Surface Mount
Mounting
Surface Mount
Series
EVQWK
Type
Edge Drive Jog Encoders
Body Orientation
Straight
Maximum Operating Torque (N.m)
0.01
Product Height (mm)
5.4
Part Status
Obsolete
Pulses per Revolution
15
HTSUS
8543.70.4500
Package
Bulk
Programmability
No
Base Product Number
EVQ-WK
EVQ-WK5001 Documents
Download datasheets and manufacturer documentation for EVQ-WK5001
