Panasonic
EVQ-VND00115B
Sensors
EVQ-VND00115B
54-EVQ-VND00115B

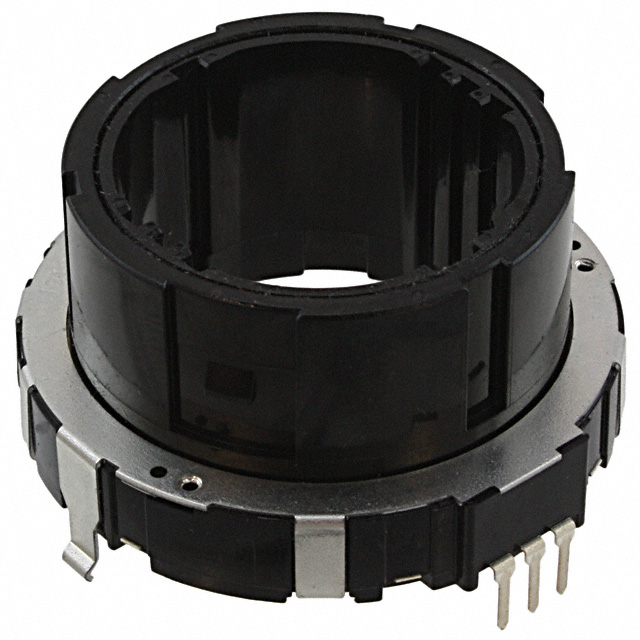

ROTARY ENCODER MECHANICAL 15PPR
In Stock : Please Submit RFQ TO US
Need wholesale pricing? Send RFQ now for the best rates and immediate response.
QUICK RFQ
ADD TO RFQ LIST
Tech Specifications
HTS
8543.70.98.60
Output Type
Quadrature
ECCN (US)
EAR99
Product
Magnetic Encoders
Encoder Type
Mechanical
PPAP
No
Built in Switch
-
Product Status
Active
Automotive
No
Number of Detents
30 Detent
Product Length (mm)
40.1
Number of Channels
2
Voltage - Supply
-
Detent
Yes
Typical Operating Supply Voltage
10VDC
Mfr
Panasonic Electronic Components
Shaft Diameter (mm)
25
EU RoHS
Compliant
Mechanical Life (Cycles)
30000
Shaft Style
Hollow
RoHS Status
ROHS3 Compliant
Moisture Sensitivity Level (MSL)
Not Applicable
Mounting Style
PCB Mount
Motion
Rotary
Termination Style
PC Pin
Actuator Type
-
Terminal Type
PC Pin
ECCN
EAR99
Rotational Life (Cycles Min)
30K
Orientation
Vertical
Mounting Type
PCB, Through Hole
Mounting
Through Hole
Series
EVQVN
Type
Incremental
With Switch
Without Switch
Body Orientation
Straight
Maximum Operating Torque (N.m)
0.02
Operating Supply Voltage
10 VDC
Product Height (mm)
20
Part Status
NRND
Pulses per Revolution
15
HTSUS
8543.70.4500
Package
Tray
USHTS
8543704500
Resolution
15 PPR
Programmability
No
Base Product Number
EVQ-VND
