Panasonic
EVE-Y75VL215B
Sensors
EVE-Y75VL215B
54-EVE-Y75VL215B

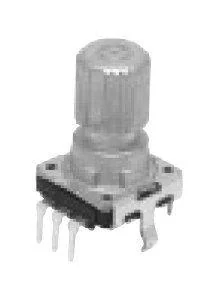

ROTARY ENCODER
In Stock : Please Submit RFQ TO US
Need wholesale pricing? Send RFQ now for the best rates and immediate response.
QUICK RFQ
ADD TO RFQ LIST
Tech Specifications
Output Type
Quadrature (Incremental)
Product
Magnetic Encoders
Encoder Type
Mechanical
Built in Switch
Yes
Product Status
Active
RoHS
RoHS Compliant
Shaft Length
16 mm
Number of Detents
32 Detent
Number of Channels
2 Channel
Technology
Rotary
Voltage - Supply
10V
Detent
Yes
Mfr
Panasonic Electronic Components
Moisture Sensitivity Level (MSL)
Not Applicable
Mounting Style
PCB Mount
Termination Style
PC Pin
Shaft Type
Knurled
Actuator Type
8mm Dia Knurled End
ECCN
EAR99
Shaft Diameter
8 mm
Rotational Life (Cycles Min)
30K
Orientation
Vertical
Mounting Type
PCB, Through Hole
Size / Dimension
11 mm x 11 mm
Series
EVE
Type
Incremental
With Switch
With Switch
Operating Supply Voltage
10 VDC
Pulses per Revolution
5
HTSUS
8543.70.4500
Package
Bulk
USHTS
8543704500
Resolution
16 PPR
EVE-Y75VL215B Documents
Download datasheets and manufacturer documentation for EVE-Y75VL215B
