Panasonic
EVE-UBCAH516B
Sensors
EVE-UBCAH516B
54-EVE-UBCAH516B

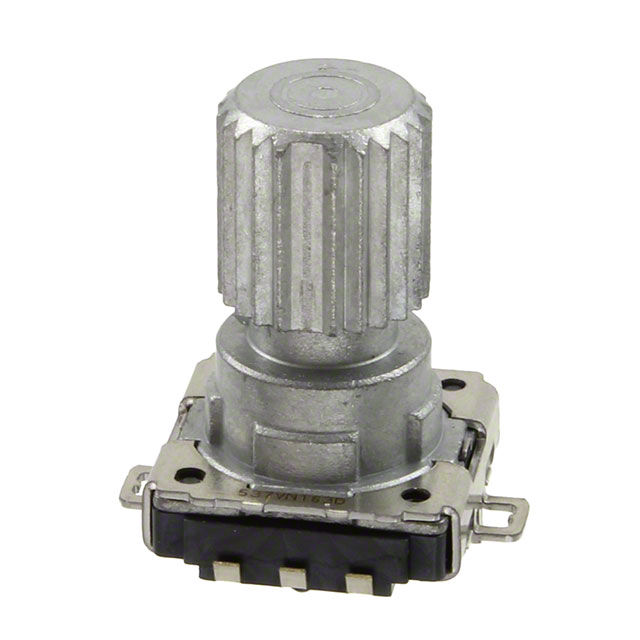

ROTARY ENCODER MECHANICAL 16PPR
In Stock : 915
Need wholesale pricing? Send RFQ now for the best rates and immediate response.
QUICK RFQ
ADD TO RFQ LIST
- 1+
- $3.19725
- $3.2
- 10+
- $2.92716
- $29.27
- 100+
- $2.74420
- $274.42
- 1000+
- $2.56996
- $2569.96
ADD TO CART
QUICK ORDER
$3.19725
$3.20
Tech Specifications
HTS
8543.70.98.60
Output Type
Quadrature (Incremental)
ECCN (US)
EAR99
Product
Magnetic Encoders
Encoder Type
Mechanical
PPAP
No
Built in Switch
Yes
Product Status
Not For New Designs
RoHS
RoHS Compliant
Automotive
No
Shaft Length
20 mm
Number of Detents
32 Detent
Number of Channels
2 Channel
Voltage - Supply
5V
Detent
Yes
REACH Status
Vendor Undefined
Mfr
Panasonic Electronic Components
EU RoHS
Compliant
Mechanical Life (Cycles)
30000
RoHS Status
ROHS3 Compliant
Encoder Code
Quadrature
Moisture Sensitivity Level (MSL)
1 (Unlimited)
Mounting Style
PCB Mount
Motion
Rotary
Encoder Signal
Digital Square Wave
Termination Style
Solder Tab
Shaft Type
Knurled
Actuator Type
8mm Dia Flatted End
Encoder Reading
Incremental
ECCN
EAR99
Rotational Life (Cycles Min)
30K
Orientation
Vertical
Mounting Type
Surface Mount
Mounting
Surface Mount
Series
EVE (GS)
Type
Incremental
With Switch
With Switch
Body Orientation
Straight
Maximum Operating Torque (N.m)
0.014
Operating Supply Voltage
10 VDC
Part Status
NRND
Pulses per Revolution
16
HTSUS
8543.70.4500
Package
Tray
USHTS
8543704500
Resolution
16 PPR
Programmability
No
