Bourns, Inc.
ENT1J-D28-L00100L
Sensors
ENT1J-D28-L00100L
54-ENT1J-D28-L00100L

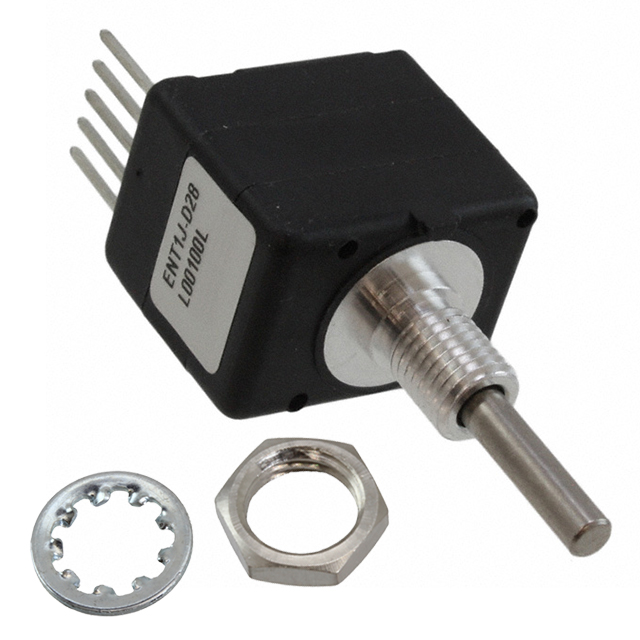

ROTARY ENCODER OPTICAL 100PPR
In Stock : Please Submit RFQ TO US
Need wholesale pricing? Send RFQ now for the best rates and immediate response.
QUICK RFQ
ADD TO RFQ LIST
Tech Specifications
Unit Weight
0.455034 oz
Product
Optical Encoders
Encoder Type
Optical
PPAP
No
Built in Switch
No
Maximum Operating Speed
3000r/min
Product Status
Active
Automotive
No
Tradename
Pro Audio
Product Length (mm)
21.21
Number of Channels
2
Technology
Rotary
Voltage - Supply
5V
REACH Status
REACH Affected
Typical Operating Supply Voltage
5VDC
EU RoHS
Compliant with Exemption
Shaft Style
Plain
Moisture Sensitivity Level (MSL)
Not Applicable
Encoder Signal
Digital Square Wave
Termination Style
PC Pin
Terminal Type
PC Pin
ECCN
EAR99
Maximum Operating Supply Voltage
5.25VDC
Rotational Life (Cycles Min)
200M
Orientation
Vertical
Mounting Type
Panel, PCB Through Hole
Size / Dimension
21 mm x 16 mm
Mounting
Bracket Mount
With Switch
Without Switch
Bushing Size
1/4 in x 3/8 in
Shock Rating
50G
Maximum Operating Torque (N.m)
0.001
SVHC
Yes
Pulses per Revolution
100
HTSUS
8543.70.4500
Package
Bulk
USHTS
8543704500
Resolution
100 PPR
Programmability
No
Bushing Thread
1/4-32 UNEF
HTS
EA
Output Type
Quadrature (Incremental)
ECCN (US)
EAR99
Minimum Operating Temperature (°C)
-40
Shaft Length
7/8 in
Maximum Operating Temperature (°C)
75
Number of Detents
No Detent
Detent
No
Mfr
Bourns Inc.
Shaft Diameter (mm)
3.18
Product Depth (mm)
15.88
Maximum Operating Temperature
+ 75 C
Mechanical Life (Cycles)
200000000
RoHS Status
ROHS3 Compliant
Encoder Code
Quadrature
Mounting Style
Panel Mount
Motion
Rotary
Bushing Material
Metal
SVHC Exceeds Threshold
Yes
Shaft Type
Round / Plain
Actuator Type
1/8" Dia Round End
Encoder Reading
Incremental
Shaft Diameter
1/8 in
Minimum Operating Temperature
- 40 C
Series
EN
Type
Incremental
Body Orientation
Straight
Minimum Operating Supply Voltage
4.75VDC
Operating Supply Voltage
5 VDC
Product Height (mm)
50.26
Part Status
Active
Base Product Number
ENT1J
