Bourns, Inc.

ENA1J-B20-L00064L

Name: ENA1J-B20-L00064L
Brand: Bourns, Inc.
SKU: 54-ENA1J-B20-L00064L
Availability: InStock
Rating: 4.7 (1 reviews)

Sensors

Manufacturer Bourns, Inc.

Mfr. Part #: ENA1J-B20-L00064L

Apmheo Part #: 54-ENA1J-B20-L00064L

Datasheet:

Bourns, Inc.-ENA1J-B20-L00064L-datasheets-683707.pdf

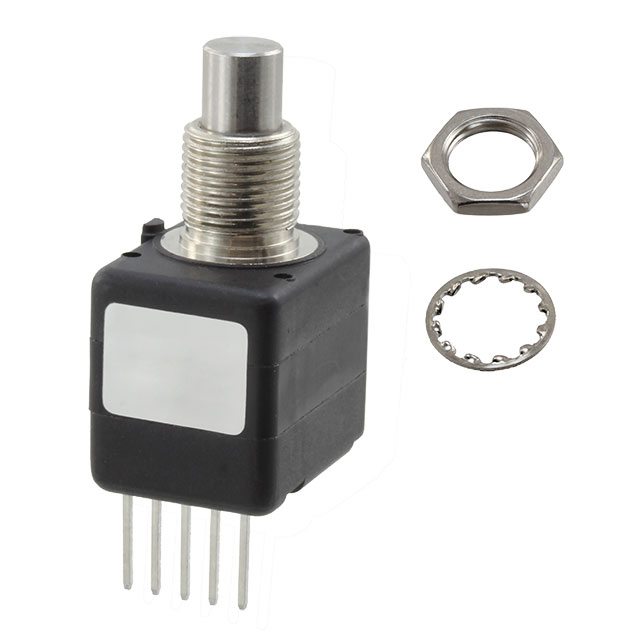

Description: ROTARY ENCODER OPTICAL 64PPR

In Stock : 29

Need wholesale pricing? Send RFQ now for the best rates and immediate response.

QUICK RFQ

ADD TO RFQ LIST

Quantity

Unit Price

Ext. Price

1+
$49.50000
$49.5

10+
$35.63857
$356.39

100+
$33.41119
$3341.12

ADD TO CART

QUICK ORDER

Unit Price： $49.50000 Subtotal： $49.50

Unit Weight

0.455034 oz

Product

Optical Encoders

Encoder Type

Optical

PPAP

No

Built in Switch

No

Maximum Operating Speed

300r/min

Product Status

Active

Automotive

No

Tradename

Pro Audio

Product Length (mm)

21.21

Number of Channels

2

Technology

Rotary

Voltage - Supply

5V

REACH Status

REACH Affected

Typical Operating Supply Voltage

5VDC

EU RoHS

Compliant with Exemption

Shaft Style

Plain

Moisture Sensitivity Level (MSL)

Not Applicable

Encoder Signal

Digital Square Wave

Termination Style

PC Pin

Terminal Type

PC Pin

ECCN

EAR99

Maximum Operating Supply Voltage

5.25VDC

Rotational Life (Cycles Min)

10M

Orientation

Vertical

Mounting Type

Panel, PCB Through Hole

Size / Dimension

21 mm x 16 mm

Mounting

Bracket Mount

With Switch

Without Switch

Bushing Size

3/8 in x 3/8 in

Shock Rating

50G

Maximum Operating Torque (N.m)

0.011

Life

100000000 Cycle

SVHC

Yes

Pulses per Revolution

64

HTSUS

8543.70.4500

Package

Bulk

USHTS

8543704500

Resolution

64 PPR

Programmability

No

Bushing Thread

3/8-32 UNEF

HTS

8543.70.42.00

Output Type

Quadrature (Incremental)

ECCN (US)

EAR99

Minimum Operating Temperature (°C)

-40

Shaft Length

5/8 in

Maximum Operating Temperature (°C)

75

Number of Detents

No Detent

Detent

No

Mfr

Bourns Inc.

Shaft Diameter (mm)

6.35

Product Depth (mm)

15.88

Maximum Operating Temperature

+ 75 C

Mechanical Life (Cycles)

10000000

RoHS Status

ROHS3 Compliant

Encoder Code

Quadrature

Mounting Style

PCB Mount

Motion

Rotary

Bushing Material

Metal

SVHC Exceeds Threshold

Yes

Shaft Type

Round / Plain

Actuator Type

1/4" Dia Round End

Encoder Reading

Incremental

Shaft Diameter

6.34 mm

Minimum Operating Temperature

- 40 C

Series

EN

Type

Incremental

Body Orientation

Straight

Minimum Operating Supply Voltage

4.75VDC

IP Rating

IP40

Operating Supply Voltage

5 VDC

Product Height (mm)

43.91

Part Status

Active

Base Product Number

ENA1J
