Bourns, Inc.

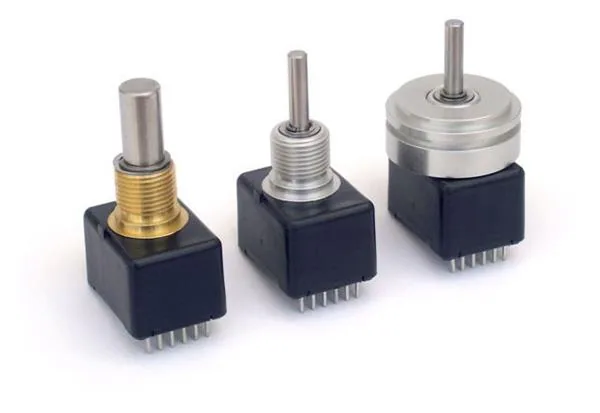

EMS22A30-M25-LD6
Sensors
EMS22A30-M25-LD6
54-EMS22A30-M25-LD6
ENCODER ROTARY MAGNETIC ABSOLUTE
In Stock : Please Submit RFQ TO US
Need wholesale pricing? Send RFQ now for the best rates and immediate response.
QUICK RFQ
ADD TO RFQ LIST
Tech Specifications
Unit Weight
0.269846 oz
Output Type
Digital
Product
Magnetic Encoders
Product Status
Active
RoHS
RoHS Compliant By Exemption
Shaft Length
25 mm
Number of Detents
No Detent
Number of Channels
1 Channel
Technology
Magnetic
REACH Status
REACH Affected
Mfr
Bourns Inc.
Maximum Operating Temperature
+ 125 C
RoHS Status
ROHS3 Compliant
Moisture Sensitivity Level (MSL)
1 (Unlimited)
Mounting Style
PCB Mount
Termination Style
PC Pin
Shaft Type
Flatted
ECCN
EAR99
Shaft Diameter
6 mm
Minimum Operating Temperature
- 40 C
Series
EMS22A
Type
Absolute
With Switch
Without Switch
IP Rating
IP65
Operating Supply Voltage
3.3 VDC
HTSUS
8543.70.4500
Package
Tray
USHTS
8543704500
Resolution
1024 PPR
Base Product Number
EMS22A30
EMS22A30-M25-LD6 Documents
Download datasheets and manufacturer documentation for EMS22A30-M25-LD6
