Omron Automation

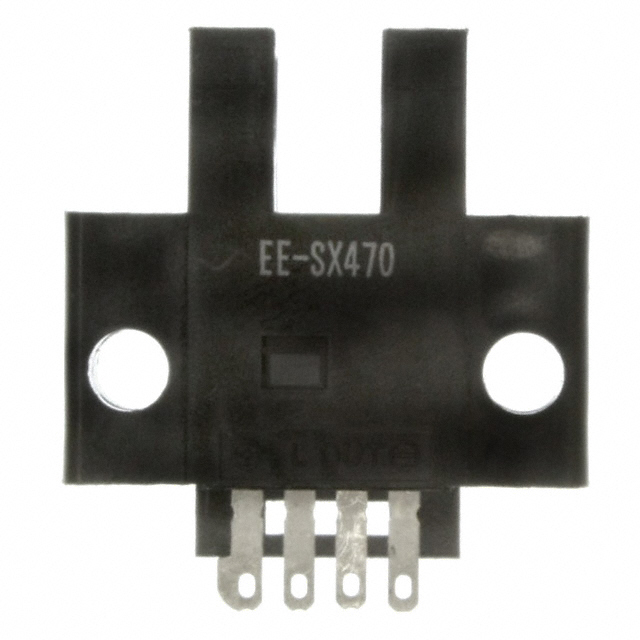

EE-SX470
Sensors
EE-SX470
54-EE-SX470
SENSOR OPTICAL 5MM MODULE W/CONN
In Stock : 19
Need wholesale pricing? Send RFQ now for the best rates and immediate response.
QUICK RFQ
ADD TO RFQ LIST
- 1+
- $39.25000
- $39.25
- 10+
- $32.70500
- $327.05
- 100+
- $28.96680
- $2896.68
- 1000+
- $28.03250
- $28032.5
ADD TO CART
QUICK ORDER
$39.25000
$39.25
Tech Specifications
Number of Channels per Chip
1
Unit Weight
0.354827 oz
Sensing Distance
0.197" (5mm)
PPAP
No
Product Status
Active
RoHS
RoHS Compliant
Automotive
No
Package / Case
Module, Connector
Number of Channels
1 Channel
Voltage - Supply
5V ~ 24V
REACH Status
REACH Unaffected
EU RoHS
Compliant
Output Device
Transistor
Slot Width
5 mm
Moisture Sensitivity Level (MSL)
Not Applicable
Operating Temperature
-25°C ~ 55°C (TA)
Termination Style
Solder Pin
Maximum Collector Current (mA)
100
ECCN
EAR99
Mounting Type
Chassis Mount
Current - Supply
35 mA
Wavelength
940 nm
Pin Count
4
Mounting
Screw
Peak Wavelength (nm)
940
HTSUS
8541.49.8000
Package
Bag
USHTS
8541498000
PCB changed
4
HTS
EE-SX470
Output Type
Phototransistor
Response Time
-
Maximum Collector-Emitter Voltage (V)
24
ECCN (US)
EAR99
Maximum Collector Current
100 mA
Output Configuration
NPN - Open Collector/Light-ON
Sensing Method
Through-Beam
Minimum Operating Temperature (°C)
-25
Gap Width (mm)
5
Maximum Operating Temperature (°C)
55
Package Height
26
Mfr
Omron Automation and Safety
Height
26 mm
Maximum Operating Temperature
+ 55 C
Width
6.95 mm
RoHS Status
ROHS3 Compliant
Mounting Style
Panel Mount
Aperture Width
0.8 mm
Package Length
25.4
Minimum Operating Temperature
- 25 C
Series
EE-SX47
Type
Transmissive
Length
25.4 mm
Part Status
Active
Package Width
6.95
EE-SX470 Documents
Download datasheets and manufacturer documentation for EE-SX470
