Bourns, Inc.

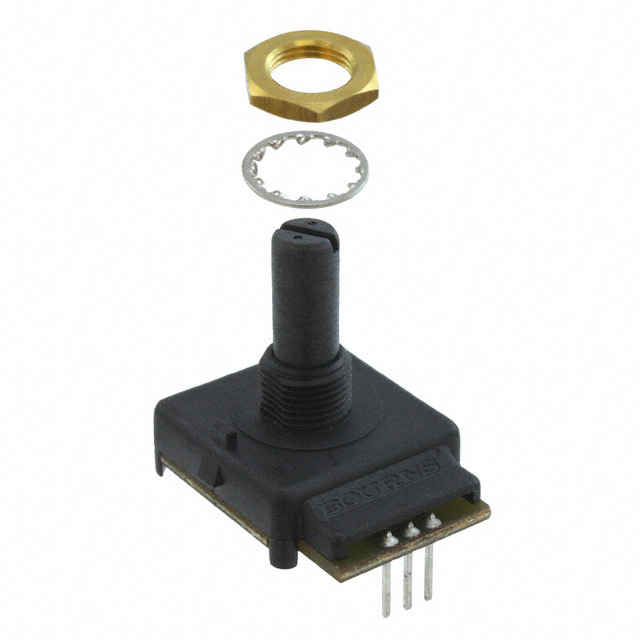

ECW0J-B24-EC0006L

Name: ECW0J-B24-EC0006L
Brand: Bourns, Inc.
SKU: 54-ECW0J-B24-EC0006L
Availability: InStock
Rating: 4.8 (2 reviews)

Sensors

Manufacturer Bourns, Inc.

Mfr. Part #: ECW0J-B24-EC0006L

Apmheo Part #: 54-ECW0J-B24-EC0006L

Datasheet:

Bourns, Inc.-ECW0J-B24-EC0006L-datasheets-679919.pdf

Description: ROTARY ENCODER MECHANICAL 6PPR

In Stock : 8

Need wholesale pricing? Send RFQ now for the best rates and immediate response.

QUICK RFQ

ADD TO RFQ LIST

Unit Weight

0.740753 oz

Bushing Thread

M9 x 0.75

Output Type

Quadrature (Incremental)

Product

Mechanical Encoders

Encoder Type

Mechanical

Built in Switch

No

Product Status

Active

RoHS

RoHS Compliant

Shaft Length

3/4 in

Number of Detents

24 Detent

Number of Channels

2 Channel

Technology

Rotary

Voltage - Supply

-

Detent

Yes

REACH Status

REACH Unaffected

Mfr

Bourns Inc.

Maximum Operating Temperature

+ 85 C

RoHS Status

ROHS3 Compliant

Moisture Sensitivity Level (MSL)

1 (Unlimited)

Mounting Style

PCB Mount

Bushing Material

Plastic

Termination Style

PC Pin

Shaft Type

Slotted

Actuator Type

1/4" Dia Flatted End

ECCN

EAR99

Shaft Diameter

6.32 mm

Rotational Life (Cycles Min)

200K

Orientation

Vertical

Mounting Type

Panel, PCB Through Hole

Size / Dimension

28.5 mm x 22 mm

Minimum Operating Temperature

- 40 C

Series

ECW

Type

Incremental

With Switch

Without Switch

Bushing Size

9 mm x 6.35 mm

IP Rating

IP40

Operating Supply Voltage

10 VDC

Life

200000 Cycle

Pulses per Revolution

6

HTSUS

8543.70.4500

Package

Tray

USHTS

8543704500

Resolution

6 PPR

Base Product Number

ECW0J
