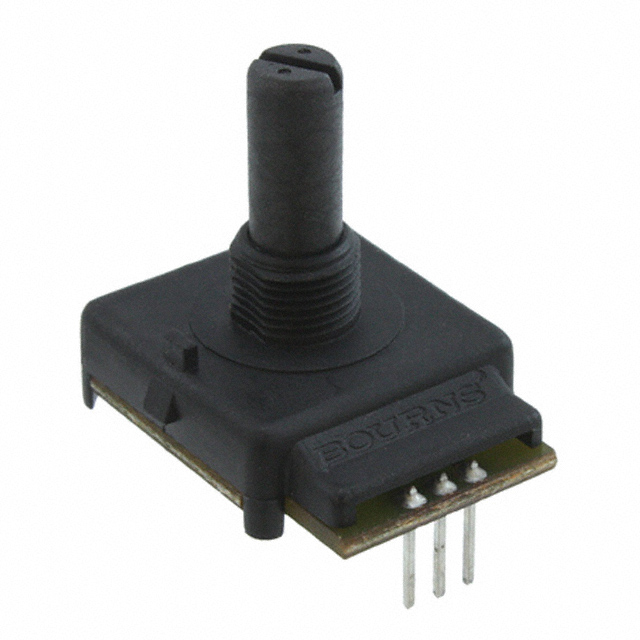

Bourns, Inc.
ECW0J-B24-BC0006L
Sensors
ECW0J-B24-BC0006L
54-ECW0J-B24-BC0006L
ROTARY ENCODER MECHANICAL 6PPR
In Stock : 143
Need wholesale pricing? Send RFQ now for the best rates and immediate response.
QUICK RFQ
ADD TO RFQ LIST
- 1+
- $3.77656
- $3.78
- 10+
- $3.45993
- $34.6
- 100+
- $3.24509
- $324.51
- 1000+
- $3.04157
- $3041.57
ADD TO CART
QUICK ORDER
$3.77656
$3.78
Tech Specifications
Unit Weight
0.740753 oz
Product
Mechanical Encoders
Encoder Type
Mechanical
PPAP
No
Built in Switch
No
Maximum Operating Speed
120r/min
Product Status
Active
RoHS
RoHS Compliant
Automotive
No
Product Length (mm)
23.37
Number of Channels
2
Technology
Rotary
Voltage - Supply
-
REACH Status
REACH Unaffected
Typical Operating Supply Voltage
10VDC
EU RoHS
Compliant
Shaft Style
Plain with Slot
Moisture Sensitivity Level (MSL)
1 (Unlimited)
Encoder Signal
Digital Square Wave
Termination Style
PC Pin
Terminal Type
PC Pin
ECCN
EAR99
Rotational Life (Cycles Min)
200K
Orientation
Vertical
Mounting Type
Panel, PCB Through Hole
Size / Dimension
28.5 mm x 22 mm
Mounting
Bracket Mount
With Switch
Without Switch
Bushing Size
9 mm x 6.35 mm
Shock Rating
50G
Maximum Operating Torque (N.m)
0.016
Life
200000 Cycle
Pulses per Revolution
6
HTSUS
8543.70.4500
Package
Tray
USHTS
8543704500
Resolution
6 PPR
Programmability
No
Bushing Thread
M9 x 0.75
HTS
8471.80.10.00
Output Type
Quadrature (Incremental)
ECCN (US)
EAR99
Minimum Operating Temperature (°C)
-40
Shaft Length
3/4 in
Maximum Operating Temperature (°C)
85
Number of Detents
24 Detent
Detent
Yes
Mfr
Bourns Inc.
Shaft Diameter (mm)
6.35
Maximum Operating Temperature
+ 85 C
Mechanical Life (Cycles)
200000
RoHS Status
ROHS3 Compliant
Encoder Code
Quadrature
Mounting Style
PCB Mount
Motion
Rotary
Bushing Material
Plastic
Shaft Type
Slotted
Actuator Type
1/4" Dia Flatted End
Encoder Reading
Incremental
Shaft Diameter
6.32 mm
Minimum Operating Temperature
- 40 C
Series
ECW
Type
Contacting Encoder
Body Orientation
Straight
IP Rating
IP40
Operating Supply Voltage
10 VDC
Product Height (mm)
33.02
Part Status
Active
Base Product Number
ECW0J
