Alps Alpine
EC09E1520407
Sensors
EC09E1520407
54-EC09E1520407

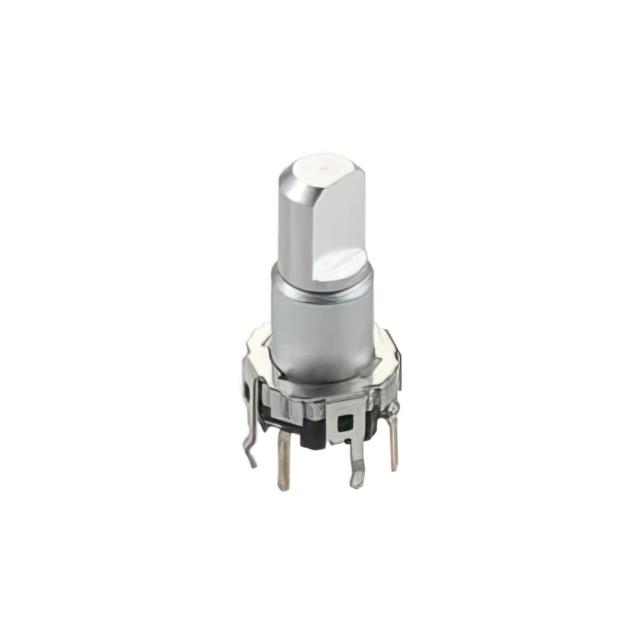

METAL SHAFT ENCODERS
In Stock : Please Submit RFQ TO US
Need wholesale pricing? Send RFQ now for the best rates and immediate response.
QUICK RFQ
ADD TO RFQ LIST
Tech Specifications
Unit Weight
0.214936 oz
Output Type
Quadrature (Incremental)
Product
Compact Encoders
Encoder Type
Incremental
Built in Switch
No
Product Status
Active
RoHS
RoHS Compliant
Shaft Length
15 mm
Number of Detents
30 Detent
Number of Channels
2 Channel
Technology
Mechanical
Voltage - Supply
5V
Detent
Yes
Mfr
Alps Alpine
Maximum Operating Temperature
+ 85 C
RoHS Status
ROHS3 Compliant
Moisture Sensitivity Level (MSL)
1 (Unlimited)
Mounting Style
PCB Mount
Termination Style
PC Pin
Shaft Type
D / Flatted
Actuator Type
4.5mm Dia Flatted End
ECCN
EAR99
Shaft Diameter
6 mm
Rotational Life (Cycles Min)
15K
Orientation
Vertical
Mounting Type
PCB, Through Hole
Size / Dimension
11.5 mm x 19.5 mm
Minimum Operating Temperature
- 40 C
Series
EC09E
Type
Incremental
With Switch
Without Switch
Operating Supply Voltage
5 VDC
Pulses per Revolution
15
Package
Tray
USHTS
8543704500
Resolution
15 PPR
